BlazeFrame® Fire Stop Products

Products > Interior Framing > BlazeFrame® Fire Stop Products

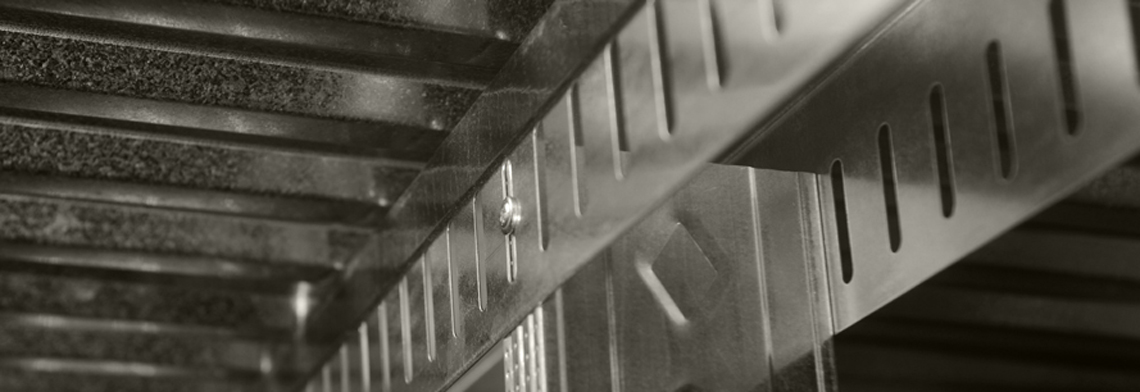

Blazeframe image2

BlazeFrame is an innovative steel framing firestop system. An intumescent strip affixed to steel profiles simultaneously frames and firestops seals  both dynamic and static joints.

The cured intumescent is odor free, effective immediately, and remains unaffected by freezing, wet or humid conditions. BlazeFrame provides joint protection for up to 1” with UL 2079 Class II or III Movement Capabilities. Designs utilizing BlazeFrame assemblies eliminate caulks, sprays, drywall rips, and contour drywall ‘castle’ cuts throughout the joint systems. Our UL (Underwriters Laboratories) classified joint systems provide for positive attachment of wall framing, smaller installed joints, and sound control with no fatigue or degradation.

HOW DOES IT WORK? The 2mm thickness of cured intumescent material adhered to metal profiles provides air and smoke seals. When exposed to heat above 375 degrees Fahrenheit, the intumescent material expands up to 35 times its size. This provides protection from heat and flame passage during a fire event.

BlazeFrame Advantages

  • UL 2079 Fifth Edition Compliant Systems
  • Shaft, Single, and Chase Walls
  • Dynamic and Static Joint Protection up to 1"
  • Up to 2 Hour Ratings
  • Lowest Achievable L-Rating (air/smoke leakage)
  • No Fatigue to Joint or Substrate Materials
  • Smaller Installed Joints
  • Reduced Sound Transmission

UL Information

Sound Testing Information

Products

Flute Cover Detail
BlazeFrame Flute Cover (FC)
Flute cover (Fc)  profile cover for under fluted decks Corrugated strap for horizontal use to span fluted areas of unprotected or protected metal decks in up to 2 hr rated assemblies.
DL1 Submittal Detail
BlazeFrame® (DL 1)
BLAZEFRAME (DL 1) deep leg Profile with two solid legs w/ firestop on one side. Composite Firestop Deflection Track System for use in fire rated wall assemblies. Two solid legs supporting “free floating” studs.
DL2 Submittal Detail
BlazeFrame® (DL 2)
BLAZEFRAME (DL 2) deep leg Profile with two solid legs with firestop on both sides. Composite Firestop Deflection Track System for use in fire-rated wall assemblies. Two solid legs supporting “free floating” studs.
DSL2 Submittal Detail
BlazeFrame® (DSL 2)
BLAZEFRAME (DSL 2) SLOTTED BOTH SIDES Profile with two slotted legs w/ firestop on both sides. Composite Firestop Deflection Track System for use in fire rated wall assemblies. Legs with slots spaced 1” o.c. for positive attachment to studs.
JR1 Submittal Detail
BlazeFrame® (JR 1)
BLAZEFRAME (JR 1) Shaftwall deep leg Profile with two solid legs with fire stop on one side. Composite Firestop Deflection Track System for use in up to 2 hr rated shaft wall assemblies. One leg (front) having intumescent.
ODL2 Submittal Detail
BlazeFrame® (ODL 2)
BLAZEFRAME (ODL 2) offset deep leg Profile with two solid legs with firestop on both sides. Composite Firestop Deflection Track System with "offset step" accommodates fireproofing up to 1-1/2" thick in head of wall and wall to wall (column)…
ODSL2 Submittal Detail
BlazeFrame® (ODSL 2)
BLAZEFRAME (ODSL 2) offset deep leg Profile with two slotted lower legs with firestop on both sides. Composite Firestop Deflection Track System with "offset step" accommodates fireproofing up to 1-1/2" thick in head of wall and wall to wall (…
SL1 Submittal Detail
BlazeFrame® (SL 1)
BLAZEFRAME (SL 1) SLOTTED one SIDE Profile with one slotted leg and one solid leg w/ firestop on slotted side. Composite Firestop Deflection Track System for use in fire rated wall assemblies. One leg with slots spaced 1” o.c. for positive…
BlazeFrame® Perimeter L-Bead
VINYL L-Bead with Compressible Foam Creates an easy attachment that is attained with staples through the bead flange.
1-Hour RipTRAK
BlazeFrame® RipTRAK™
head-of-wall deflection track - 1 & 2 hour system BlazeFrame RipTRAK is a deflection track with an offset shoulder that represents the thickness of the gypsum board (5/8" or 1-1/4”). A second piece of gypsum board (wall cladding strips)…
BLAZEFRAME® RipTRAK™ SHAFTWALL - 1 HOUR SYSTEM
BlazeFrame® RipTRAK™ Shaftwall
head-of-wall deflection track - 1 & 2 hour system BlazeFrame RipTRAK Shaftwall is a ceiling runner with an offset shoulder that represents the thickness of the wall material (5/8" or 1-1/4").  A second piece of board/wall…
FAS-093X Fire Rated Control Joint
FAS-093X fire rated control joint - profile for protection of control joints Fire Rated Control Joint is a composite control joint with intumescent tape factory applied to the back side of the control joint.
UltraBead
UltraBead - Fire, Smoke & Sound
Vinyl L-Bead with Compressible Foam UltraBEAD, when used in conjunction with UltraTRAK slotted deflection track or Deep Leg deflection tracks, provides joint protection up to ¾” for a 1 or 2 HR concrete deck Head of Wall Joint System at 60%…
