BlazeFrame® (DSL 2)

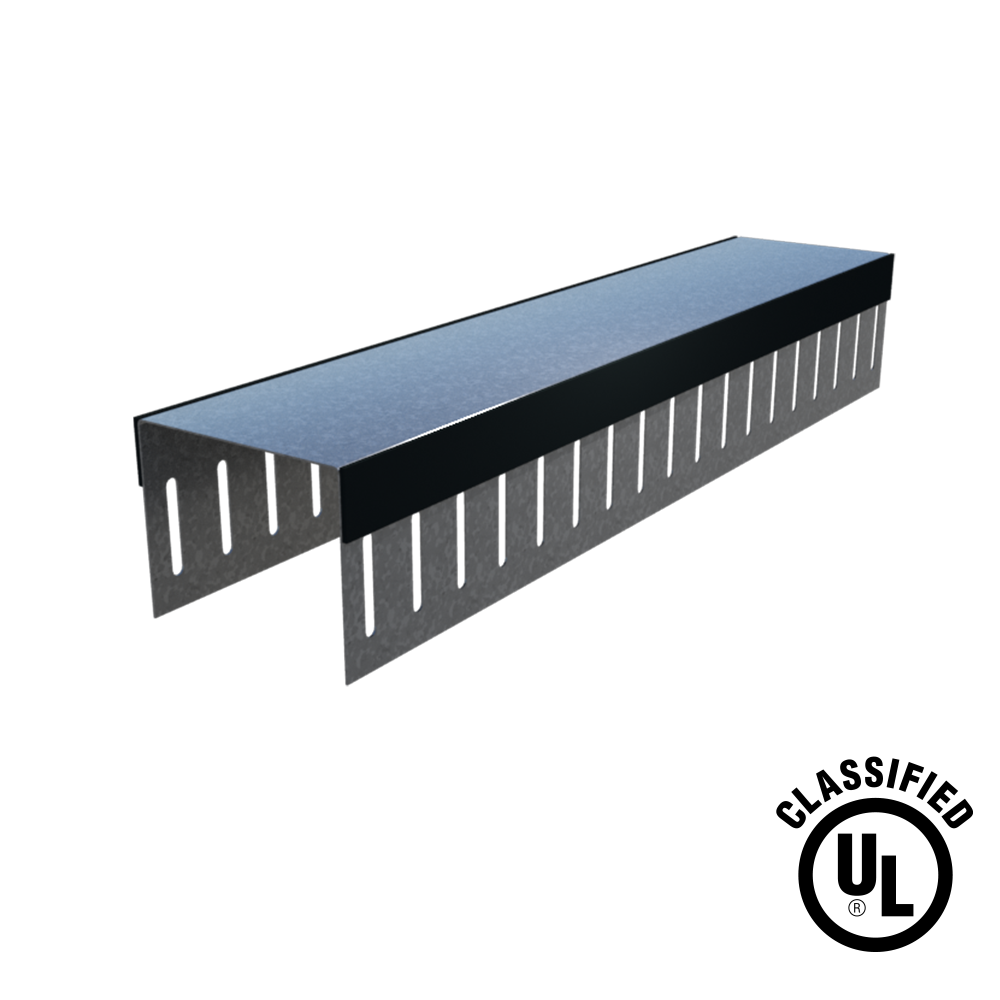

BLAZEFRAME (DSL 2) SLOTTED BOTH SIDES

Profile with two slotted legs w/ firestop on both sides. Composite Firestop Deflection Track System for use in fire rated wall assemblies. Legs with slots spaced 1” o.c. for positive attachment to studs.

Found in:

Interior Framing > Fire-Rated Systems

Interior Framing > Head-of-Wall Deflection Systems

Description

Composite Firestop/Framing for use in fire-resistant joint systems in or between fire-resistance-rated walls and floor/ceiling or roof/ceiling assemblies. Many assemblies can also be used in smoke barriers with tested air leakage (L ratings) well below the code defined maximum of 5 cfm per linear foot.

UL 2079 - Fifth Edition Compliant

When used in conjunction with BlazeFrame Perimeter L-Bead, DSL2 is UL 2079-fifth edition compliant. Provides joint protection for up to 1" with UL 2079 Class II or III Movement Capabilities. Legs with slots spaced 1" o.c. for positive attachment of studs per listed assemblies in UL Fire Resistance Directory. A 2mm thickness of cured intumescent material adhered to metal profiles provides air and smoke seals. When exposed to heat above 375 degrees Fahrenheit, the intumescent material expands up to 35 times its size. This provides protection from heat and flame passage during a fire event.

UL Classified and Listed Joint Systems
Intumescent strip provides air & smoke seals
Patents: www.cd-patents.com

Product Data & Ordering Information:

Material: Yield Strength: Grade 33ksi for 30mils, 33mils & 43mils - 50ksi for 54mils
Coating: G40 EQ for 30mils, All others = CP60 (CP90 available)
30mils: 20ga DW, 0.0312" Design Thickness, 0.0296" Min. Thickness
33mils: 20ga STR, 0.0346" Design Thickness, 0.0329" Min. Thickness
43mils: 18ga, 0.0451" Design Thickness, 0.0428" Min. Thickness
54mils: 16ga, 0.0566" Design Thickness, 0.0538" Min. Thickness

Dimensions:

Profile	Leg Length (L)	Tape Width (I)	Slot Height (S)	Joint Protection
DSLE2	2.50"	0.75"	1.50"	0.50"
DSL 2	3.00"	1.00"	1.50"	0.75"
DSLW 2	3.00"	1.25"	1.50"	1.00"

(30mils is only available in DSLE2 and DSL 2 Profiles)

Inside depth: Equal to the outside width of the stud
Web sizes (W): 2-1/2", 3-5/8", 4", 6", 8"
Vertical slots: 0.22" wide & spaced every 1" o.c.
Track length: 10'-0"

Technical Data

UL Information

ClarkDietrich/BlazeFrame Full UL Fill, Void or Cavity Materials Listing

Sound Testing Information

Head-of-Wall Sound Assemblies with BlazeFrame Perimeter L-Bead

Product Information

Need help with making the best product selections for your Fire-Rated Project?
Submit info to our Technical Services Representatives to help answer your questions.

Resources

A CAD Details Architectural Specs AIA / CEU SustainabilityPRO

Code Approvals & Performance Standards

AISI S100-16 (2020) w/S2-20 North American Specification for the Design of Cold-Formed Steel Structural Members
AISI S220-20 North American Standard for Cold-Formed Steel Framing - Nonstructural Members

(Compliant to ASTM C645, but IBC replaced with AISI S220 in IBC 2015)
Section A3 Material - Chemical & mechanical requirements (Referencing ASTM A1003/A1003M)
Section A4 Corrosion Protection (Referencing ASTM A653/A653M)

AISI S240-20 North American Standard for Cold-Formed Steel Structural Framing

(Compliant to ASTM C955, but IBC replaced with AISI S200 in IBC 2015, AISI S240 in IBC 2018)
Section A3 Material - Chemical & mechanical requirements (Referencing ASTM A1003/A1003M)
Section A4 Corrosion Protection (Referencing ASTM A653/A653M)

UL File number XHHW.R26034 BlazeFrame DLE2 and DSLE2 Series fire rated assemblies
UL File number XHHW.R26034 BlazeFrame DSL1 and DSL2 Series fire rated assemblies
UL Designs 2079 Fifth Edition Tests for Fire Resistance of Building Joint Systems

(When used in conjunction with BlazeFrame Perimeter L-Bead)
IBC requires fire-resistant joint systems be tested in accordance w/the requirements of either ASTM E1966 or UL 2079.

SDS For ASTM A1003 Steel Framing Products For Interior Framing, Exterior Framing and Clips/Accessories
SDS BlazeFrame Tape - Rectorseal Intumescent Fire-Stop System
SDS BlazeFrame Tape - INCA Intumescent Fire-Stop System
