BlazeFrame® (DL 1)

BLAZEFRAME (DL 1) deep leg

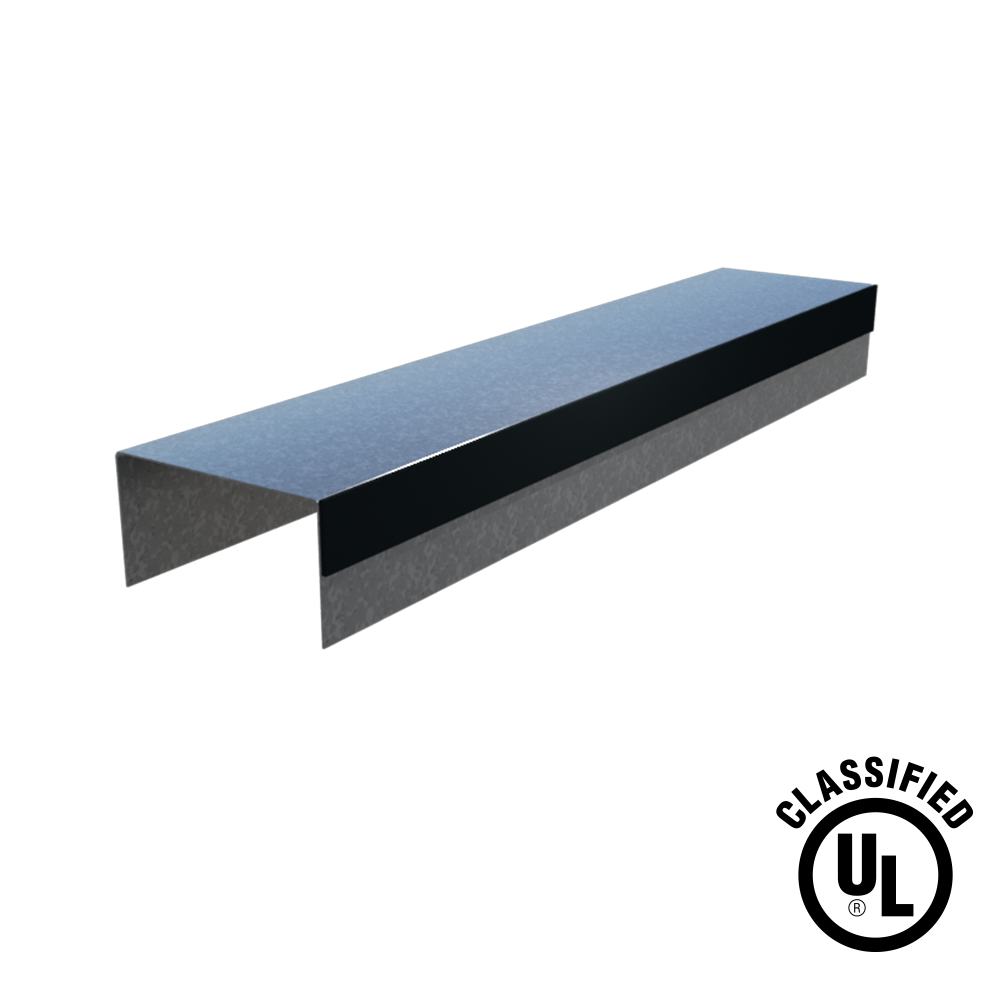

Profile with two solid legs w/ firestop on one side. Composite Firestop Deflection Track System for use in fire rated wall assemblies. Two solid legs supporting “free floating” studs.

Application(s): Chase Wall, Shaftwall

Composite Firestop/Framing for use in fire-resistant joint systems in or between fire-resistance-rated walls and floor/ceiling or roof/ceiling assemblies. Many assemblies can also be used in smoke barriers with tested air leakage (L ratings) well below the code defined maximum of 5 cfm per linear foot. (This profile should only be used in shaftwall or chase wall applications)

When used in conjunction with BlazeFrame Perimeter L-Bead, DL 1 is UL 2079-fifth edition compliant.  Provides joint protection for up to 1" with UL 2079 Class II or III Movement Capabilities. Two solid legs supporting "free floating" studs per listed assemblies in UL Fire Resistance Directory. A 2mm thickness of cured intumescent material adhered to metal profiles provides air and smoke seals. When exposed to heat above 375 degrees Fahrenheit, the intumescent material expands up to 35 times its size. This provides protection from heat and flame passage during a fire event.

  • UL Classified and Listed Joint Systems
  • Intumescent strip provides air & smoke seals
  • Patents: www.cd-patents.com

Code Approvals & Performance Standards

  • AISI S220-15 North American Standard for CFS Framing - Nonstructural Members
    • (Compliant to ASTM C645 , but IBC replaced with AISI S220 in IBC 2015)
    • Section A4 Material - Chemical & mechanical requirements (Referencing ASTM A1003/A1003M)
    • Section A5 Corrosion Protection (Referencing ASTM A653/A653M)
  • AISI S240-15 North American Standard for Cold-Formed Steel Structural Framing
    • (Compliant to ASTM C955 , but IBC replaced with AISI S200 in IBC 2015, AISI S240 in IBC 2018)
    • Section A3 Material - Chemical & mechanical requirements (Referencing ASTM A1003/A1003M)
    • Section A4 Corrosion Protection (Referencing ASTM A653/A653M)
  • UL Design 2079 Fifth Edition Tests for Fire Resistance of Building Joint Systems
    • (When used in conjunction with BlazeFrame Perimeter L-Bead)
    • IBC requires fire-resistant joint systems be tested in accordance w/the requirements of either ASTM E1966 or UL 2079.
  • UL File Number R26034-XHHW Full list of BlazeFrame UL design assemblies
  • SDS For ASTM A1003 Steel Framing Products For Interior Framing, Exterior Framing and Clips/Accessories

PRoduct submittal SHeets

Click the below Product Code to view Submittal/Tech Datasheet.

Product Code Description
DL 1 BlazeFrame® (DL 1) Systems

ClarkDietrich SubmittalPro®

Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System.
