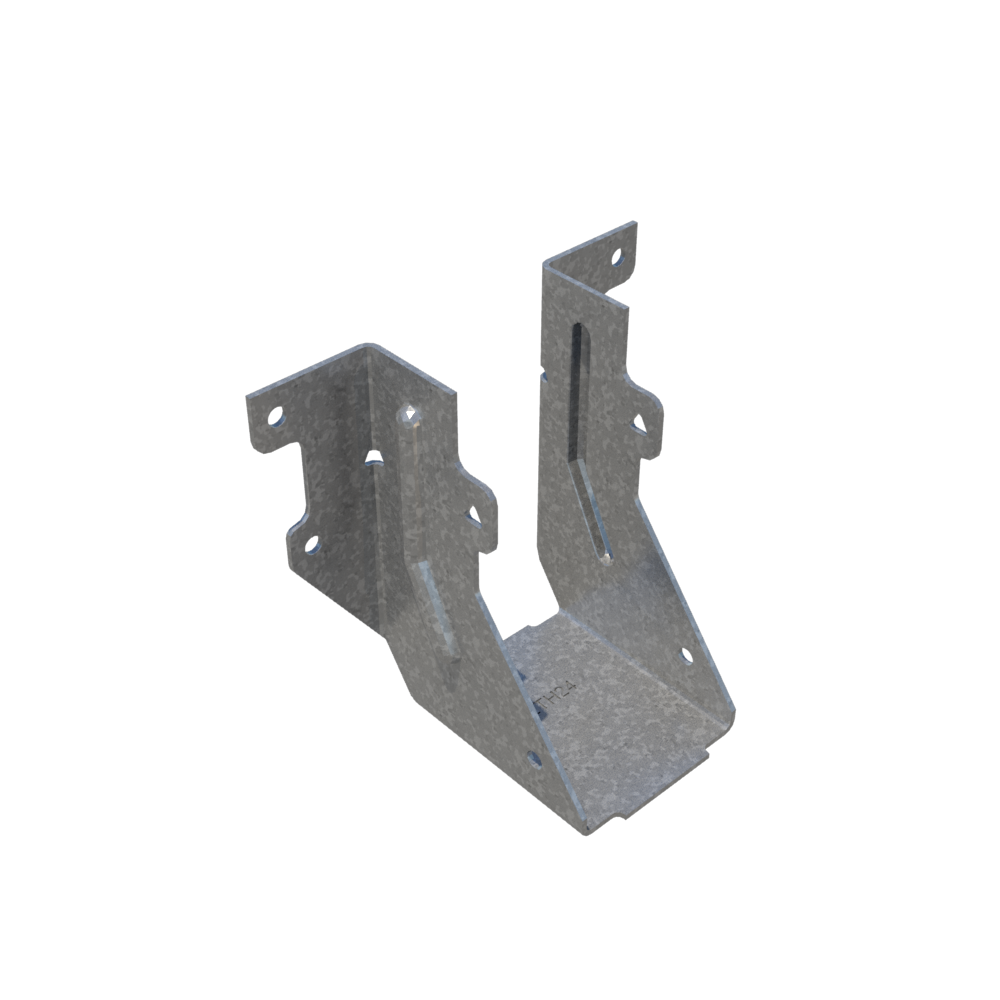

light duty face-mount hangers
Prongs secure CDLTH hangers to header for fast, easy nailing.
Application(s): Hangers
CDLTH's combine greater strength with maximum economy. Prongs secure CDLTH hangers to header for fast, easy nailing. Economical price and ease-of-use make these an ideal hanger for the do-it-yourself market.
PRODUCT DIMENSIONS
Joist Sizes: Singles and Doubles, 2x4, 2x6, 2x8
Material: 20ga (33mil), 0.0346" Design thickness, 0.0329" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
(G185 available on CDLTH24-2, CDLTH26-2 & CDLTH28-2 only)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
Product Code | Clear Width | Overall Height | Overall Depth |
---|---|---|---|
CDLTH24 | 1-9/16" | 3-3/16" | 2-1/4" |
CDLTH24-2 | 3-1/8" | 3-3/16" | 2-1/4" |
CDLTH26 | 1-9/16" | 4-3/4" | 2-1/4" |
CDLTH26-2 | 3-1/8" | 4-3/4" | 2-1/4" |
CDLTH28 | 1-9/16" | 6-11/16" | 2-1/4" |
CDLTH28-2 | 3-1/8" | 6-11/16" | 2-1/4" |
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com






load table
- CDLTH - Light Duty Face-Mount Hangers Allowable Loads
(Allowable loads for CDLTH24-2 and CDLTH26-2 currently not available)
Code Approvals & Performance Standards
- ASTM A653 Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process
- ASTM A1003 Standard Specification for Steel Sheet, Carbon, Metallic- and Nonmetallic-Coated for Cold-Formed Framing Members
- ICC-ES ESR-5062 Evaluation report for joist hangers
- SDS For ASTM A1003 Steel Framing Products For Interior Framing, Exterior Framing and Clips/Accessories
Product submittal SHeets
Click the below Product Code to view Submittal/Tech Datasheet.
Product code | Description |
---|---|
CDLTH | Light Duty Face-Mount Hangers |
