V Truss - Walls & Ceilings

Wall & Ceilings Reinforcing

V Truss for Walls & Ceilings is designed to improve the performance of stucco on overhead surfaces.

Application(s): Stone Veneer, Stucco

V Truss for Walls & Ceilings is a self-furring welded wire lath for use as an alternative to 3.4lb rib metal lath.


Find out more about Structa Wire here

IMPROVED STUCCO PERFORMANCE

In the past, applying stucco overhead has meant contending with falling stucco, poor embedment, and cracking. At Structa Wire, we have eliminated these frustrations with the design of a unique sheet product. V Truss for Walls & Ceilings, also known as Structa Rib Lath, features key elements that work together to provide easy installation, decreased fall-out and a smooth 'crack-free' soffit. The product was refined and improved through a series of field trials. It was so well received that a contractor claimed that this product would "revolutionize" the stucco industry.

STRONG, SAFE AND EASY TO USE

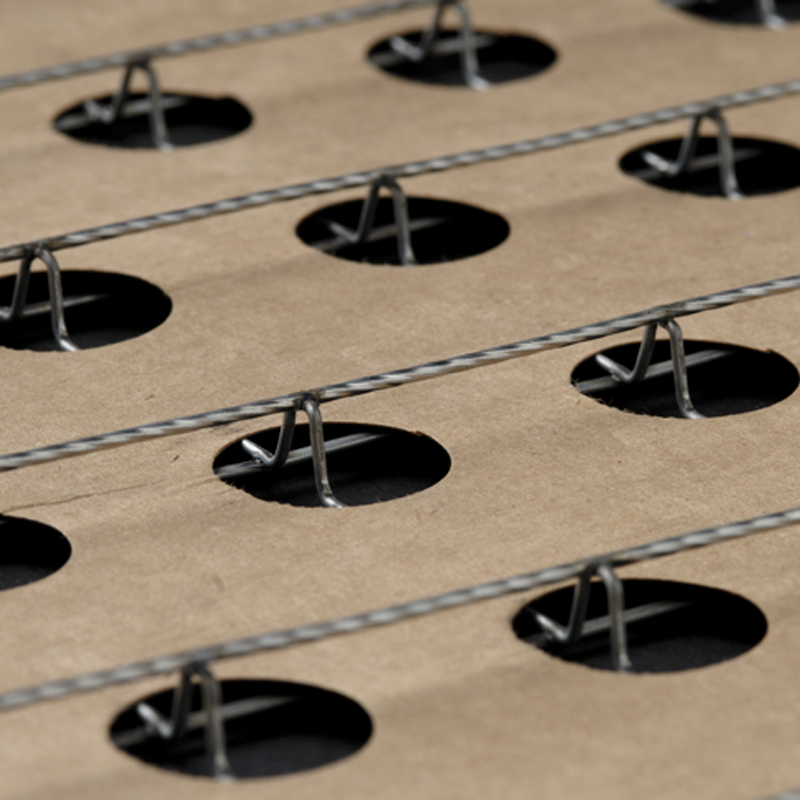

V Truss for Walls & Ceilings combines a series of 3/8-inch 'V' shaped trusses, and heavy perforated draft paper that is sandwiched between the primary sheet and back layer of stiffening wires. The sheets are lightweight, yet strong and easy to cut. Attachment points are identified on the printed kraft paper for ease of installation.

  • V Truss for Walls & Ceilings has stiff backing wires
  • The lap joints are single mesh at ends and sides
  • Single mesh lap joints provide for full keying & embedment
  • The product can span 24" o.c.
  • On walls, the product can span 24" open framing (metal or wood)

Product data & ordering information

  • Palletized 12 sheets per bundle (25 square yards)
  • 20 bundles per pallet (500 square yards)
  • All nose wires should be covered with 1/8″ stucco
  • Products should be stored per ASTM C1063-97

Code Approvals & Performance Standards

  • ASTM A641 Standard Specification for Zinc–Coated (Galvanized) Carbon Steel Wire
  • ASTM C933 Standard Specification for Welded Wire Lath
  • ASTM C1063 Standard Specification for Installation of Lathing and Furring to Receive Interior and Exterior Portland Cement-Based Plaster
  • IAPMO ER-2017 Metal Lath
  • SDS StructaWire for StructaWire products

Specifications & Substitution Forms

To simplify the Product Substitution Request process when Structa Wire or ClarkDietrich’s products are not listed in the Architectural Specification, see our CSI Substitution Request Forms to help streamline the procedure.

PRoduct submittal SHeets

Click the below Product Code to view Submittal/Tech Datasheet.

Product codeDescription
V Truss Walls & CeilingsV Truss Walls & Ceilings

ClarkDietrich SubmittalPro®

Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System.
