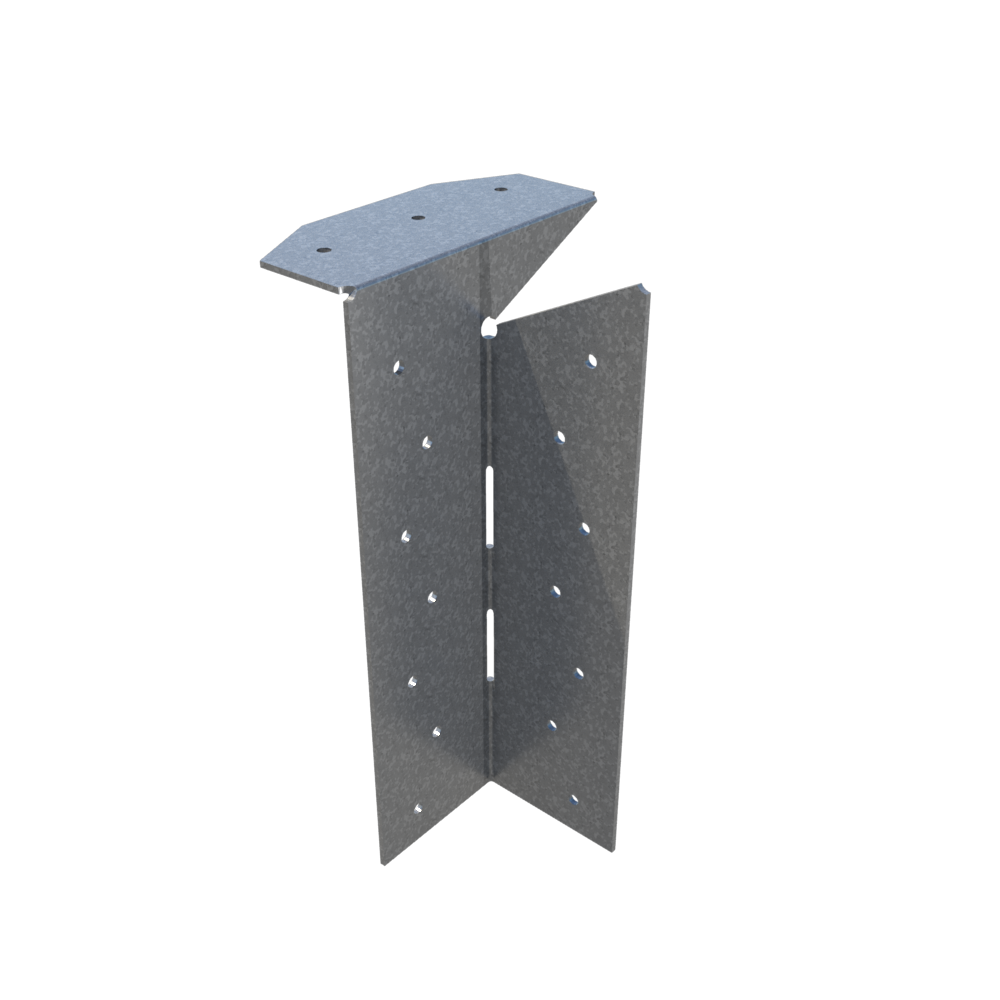

Universal Joist Hanger (UJH)

Steel Beam - Soft Side
Box Beam - Soft Side
Steel Beam - Hard Side
Box Beam - Hard Side

Floor joists connection to structural steel beams or CFS headers

The Universal Joist Hangers (UJH) are used to connect joists to CFS headers and steel I-beams.

Application(s): Joist / Truss Connection

The Universal Joist Hangers (UJH) 68mils (14ga) or 97mils (12ga) are used to connect joists to CFS headers (with screws, welds or PAF fasteners) and steel I-beams (with welds or PAF fasteners). The UJH is sized to fit joist sizes from 8" to 14" deep.

Product Data & Ordering Information

Product codeMilsGaugeDesign ThicknessPcs./Bkt
UJH-6868140.0713"50
UJH-9797120.1017"50

Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights

Installation

Clip to Joist Attachment:

  • The joist flange must rest on top of the Universal Joist Hanger as shown in the image to the right. Attach the UJH hanger with specified number of #10 or #14 screws as listed in the table below under the Joist column.

Clip attachment to CFS Header:

  • Attach the UJH hanger to the top and side (face) of the CFS Header with specified number of #10 screws as listed in the table below.

Clip attachment to Structural Beam:

  • Welded Connection:
    The minimum required weld to the top flange is 2" fillet weld to each side of top flange. Special considerations must be taken when welding galvanized steel.
  • PAF (Powder Actuated Fasteners):
    For powder actuated fasteners attachment (PAF, 0.157"), steel headers shall have minimum 3/16" thickness and minimum yield strength of 36 ksi.
A CAD Details Architectural Specs AIA / CEU SustainabilityPRO

Documents

Code Approvals & Performance Standards

  • ASTM A653 Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process
  • ASTM A1003 Standard Specification for Steel Sheet, Carbon, Metallic- and Nonmetallic-Coated for Cold-Formed Framing Members
  • SDS For ASTM A1003 Steel Framing Products For Interior Framing, Exterior Framing and Clips/Accessories


CAD Details

Note: to view all of ClarkDietrich's CAD details, visit the CAD Details Library.

ClarkDietrich Universal Joist Hanger UJH-1
PDF DWG DXF
ClarkDietrich Universal Joist Hanger UJH-1
Prev Next
ClarkDietrich Universal Joist Hanger UJH-1
PDF DWG DXF Share Detail Preview
ClarkDietrich Universal Joist Hanger UJH-1
ClarkDietrich Universal Joist Hanger UJH-2
PDF DWG DXF
ClarkDietrich Universal Joist Hanger UJH-2
Prev Next
ClarkDietrich Universal Joist Hanger UJH-2
PDF DWG DXF Share Detail Preview
ClarkDietrich Universal Joist Hanger UJH-2
ClarkDietrich Universal Joist Hanger UJH-3
PDF DWG DXF
ClarkDietrich Universal Joist Hanger UJH-3
Prev Next
ClarkDietrich Universal Joist Hanger UJH-3
PDF DWG DXF Share Detail Preview
ClarkDietrich Universal Joist Hanger UJH-3
ClarkDietrich Universal Joist Hanger UJH-4
PDF DWG DXF
ClarkDietrich Universal Joist Hanger UJH-4
Prev Next
ClarkDietrich Universal Joist Hanger UJH-4
PDF DWG DXF Share Detail Preview
ClarkDietrich Universal Joist Hanger UJH-4

PRoduct submittal SHeets

Click the below Product Code to view Submittal/Tech Datasheet.

Product CodeDescription
UJH-68Universal Joist Hanger
UJH-97

ClarkDietrich SubmittalPro®

Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System.
