TIE PLATE ANCHOR SERIES

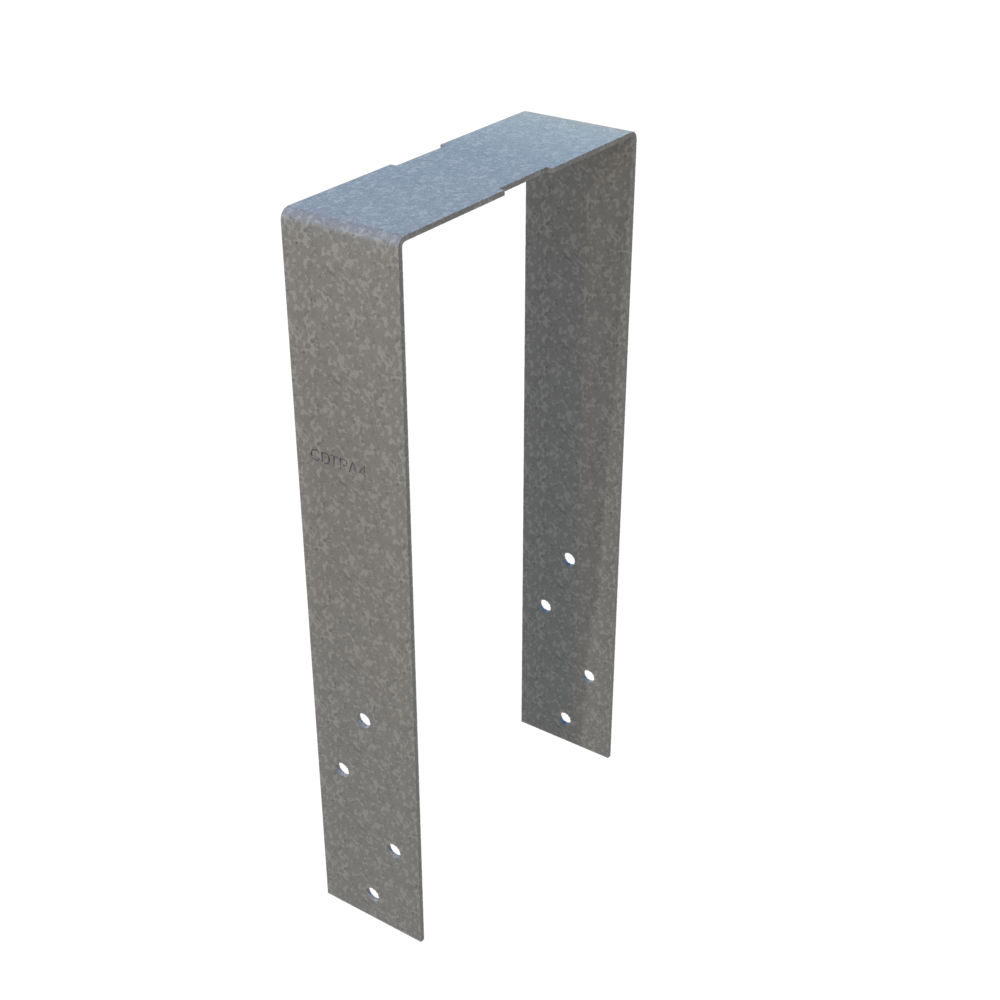

The CDTPA Anchor Series is manufactured to resist uplift of the top plate(s) of solid sawn or structural composite lumber wall members from solid sawn or structural composite lumber wall stud members.
The CDTPA Anchor Series is manufactured to resist uplift of the top plate(s) of solid sawn or structural composite lumber wall members from solid sawn or structural composite lumber wall stud members.
CDTPA4 and CDTPA6 anchors resist upward load on nominal 2x4 and 2x6 respectively, solid sawn or structural composite lumber walls.
Material: 20ga (33mil), 0.0346" Design thickness, 0.0329" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
- For all technical inquiries regarding residential connectors, please contact Clip Express at 866-638-1908 or clipexpress@clarkdietrich.com.
| Product Code | Gauge | Width | Height | Depth |
|---|---|---|---|---|
| CDTPA4 | 20 | 3.5625 | 7.5265 | 1.25 |
| CDTPA6 | 20 | 5.5625 | 8.0625 | 1.25 |
load table
- For all technical inquiries regarding residential connectors, please contact Clip Express at 866-638-1908 or clipexpress@clarkdietrich.com.
Code Approvals & Performance Standards
- ASTM A653 Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process
- ASTM A1003 Standard Specification for Steel Sheet, Carbon, Metallic- and Nonmetallic-Coated for Cold-Formed Framing Members
- IAPMO ER-0176 Evaluation Report for Wood Framing Hangers and Anchors
- SDS For ASTM A1003 Steel Framing Products For Interior Framing, Exterior Framing and Clips/Accessories
Product submittal SHeets
Click the below Product Code to view Submittal/Tech Datasheet.
| Product code | Description |
|---|---|
| CDTPA4, CDTPA6 | Tie Plate Anchor Series |
