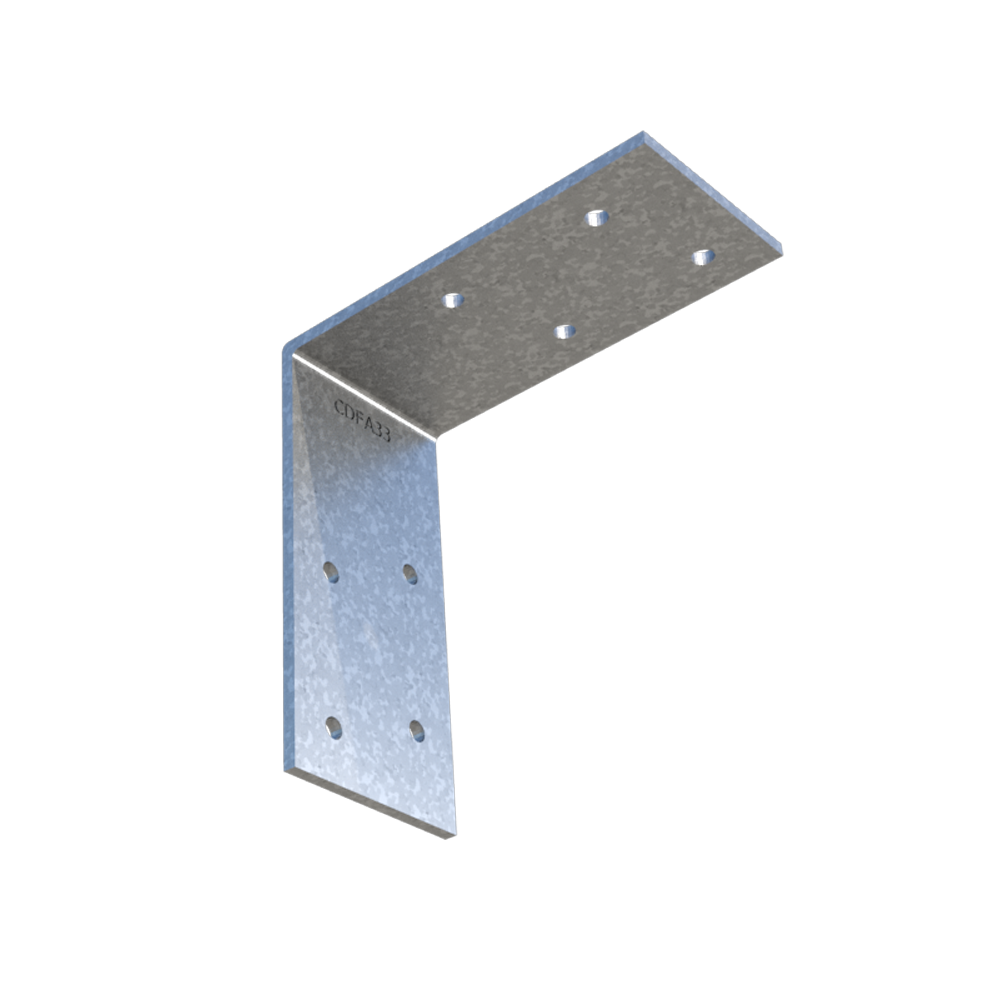

CDFA33-APP
CDFA44-APP
CDFA66-APP
CDFA88-APP

Light and Medium Framing Angle

CDFA's provide fast, accurate bolting of two intersecting wood members (reinforcing intersection joints).

Application(s): Angles and Straps

CDFA's provide fast, accurate bolting of two intersecting wood members (reinforcing intersection joints). Versatile angles that are nailed to reinforce intersecting wood members.

Medium angles are designed for standardization and construction economies.

Material: 18ga (43mil), 0.0451 Design thickness, 0.0428 Minimum thickness
                 12ga (97mil), 0.1017" Design thickness, 0.0966" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)





Product Code Gauge Dimensions
L1 L2 W
CDFA21 18 2-1/16" 1-37/64" 1-3/8"
CDFA23 18 2-1/16" 1-37/64" 2-3/4"
CDFA33 12 3-7/32" 3-1/16" 1-1/2"
CDFA44 12 4-15/32" 4-15/32" 1-3/16"
CDFA66 12 6" 6" 1-1/5"
CDFA88 12 8-1/8" 8-1/8" 2"







Documents

Code Approvals & Performance Standards

  • ASTM A653 Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process
  • ASTM A1003 Standard Specification for Steel Sheet, Carbon, Metallic- and Nonmetallic-Coated for Cold-Formed Framing Members
  • ICC-ES ESR-5079 Evaluation report for clips, angles and hurricane ties
  • SDS For ASTM A1003 Steel Framing Products For Interior Framing, Exterior Framing and Clips/Accessories

PRoduct submittal SHeets

Click the below Product Code to view Submittal/Tech Datasheet.

Product code Description
CDFA21 Light and Medium Framing Angle
CDFA23
CDFA33
CDFA44
CDFA66
CDFA88
