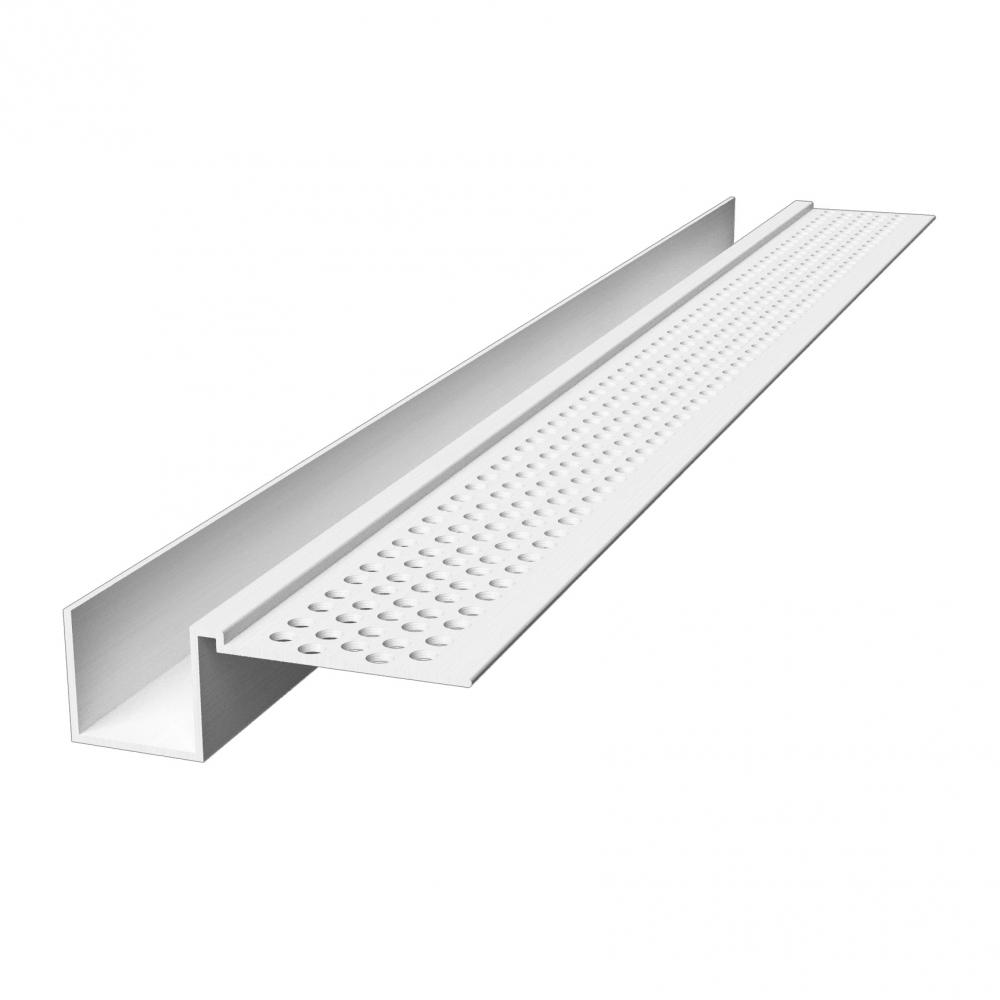

Create 1/4" to 1" reveals in drywall surfaces
Designed to be used at the juncture of door jambs, windows and other unfinished surfaces.
Application(s): Drywall
Designed to be used at the juncture of door jambs, windows and other unfinished surfaces. Factory fabricated intersections available.
Product Data & Ordering Information
| Product code | Board thickness (A) | Reveal (B) | Flange (C) | Length | Pcs./Box |
|---|---|---|---|---|---|
| FDC50-25S | 1/2" | 1/4" | 1-1/8" | 10' | 25 |
| FDC50-38S | 1/2" | 3/8" | 1-1/8" | 10' | 25 |
| FDC50-50S | 1/2" | 1/2" | 1-1/8" | 10' | 25 |
| FDC50-75S | 1/2" | 3/4" | 1-1/8" | 10' | 20 |
| FDC50-100S | 1/2" | 1" | 1-1/8" | 10' | 15 |
| FDC58-25S | 5/8" | 1/4" | 1-1/8" | 10' | 20 |
| FDC58-38S | 5/8" | 3/8" | 1-1/8" | 10' | 20 |
| FDC58-50S | 5/8" | 1/2" | 1-1/8" | 10' | 15 |
| FDC58-75S | 5/8" | 3/4" | 1-1/8" | 10' | 15 |
| FDC58-100S | 5/8" | 1" | 1-1/8" | 10' | 10 |
Documents
Code Approvals & Performance Standards
- ASTM C840 Standard Specification for Application and Finishing of Gypsum Board
- ASTM C1047 Standard Specification for Accessories for Gypsum Wallboard and Gypsum Veneer Base
- ASTM D3678 Standard Specification for Rigid Poly(Vinyl Chloride) (PVC) Interior - Profile Extrusions
- SDS Vinyl Corp PVC Compounds
Storage:
All stored materials shall be kept dry. Materials shall be stacked off the ground, supported on a level platform, and protected from the weather.
PRoduct submittal SHeets
Click the below Product Code to view Submittal/Tech Datasheet
| Product Code | Description |
|---|---|
| FDC50, FDC58 | "F" Channel Reveal |
ClarkDietrich SubmittalPro®
Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System
- Contact ClarkDietrich Technical Services at 888-437-3244 for any questions about creating product submittals or using SubmittalPro.
