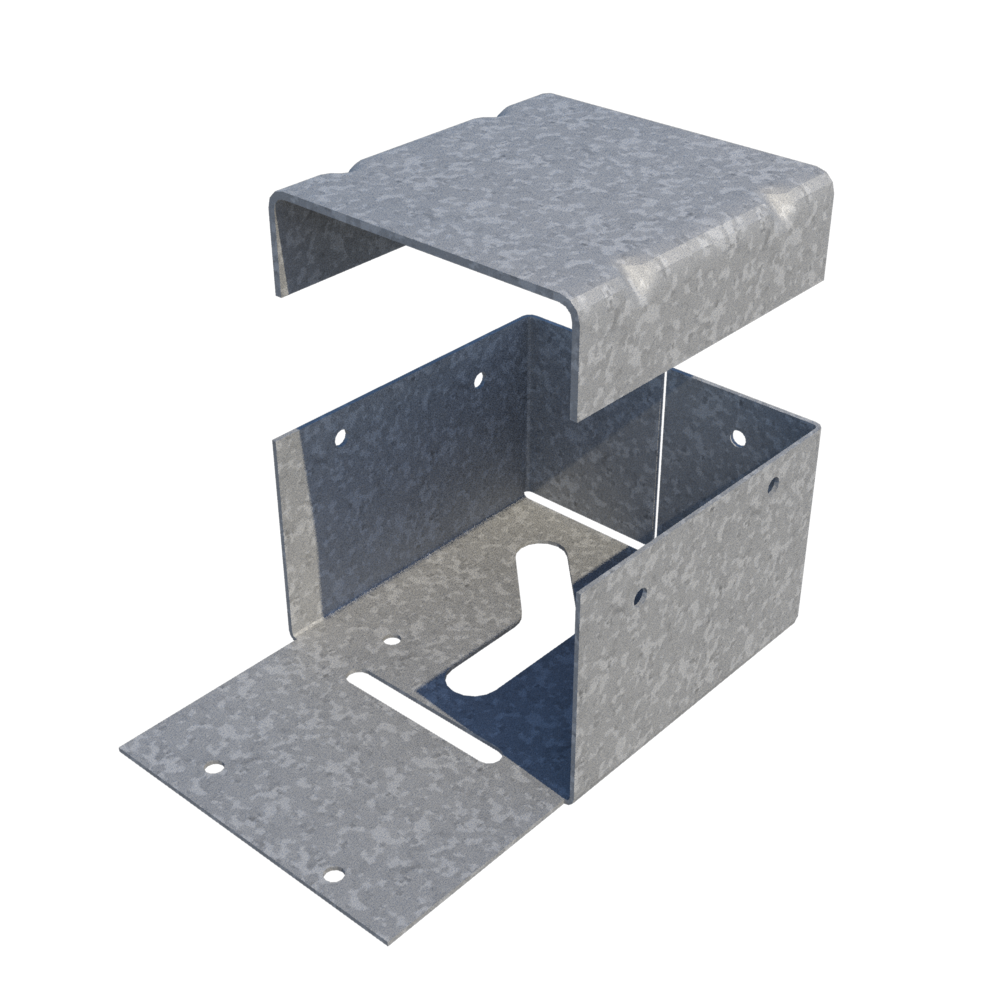

Post Base with Adjustable Anchor
The fully adjustable post base with stand-off plate secures wood posts to concrete surfaces in new or remodeling applications where damp rot is a problem. The 1” stand-off plate provides flat end bearing area for posts and keeps the post end 1-3/16” above the surface moisture. Bending slot on post base provides greater ease of installation.
The fully adjustable post base with stand-off plate secures wood posts to concrete surfaces in new or remodeling applications where damp rot is a problem. The 1” stand-off plate provides flat end bearing area for posts and keeps the post end 1-3/16” above the surface moisture. Bending slot on post base provides greater ease of installation.
Material: CDAA44 - 18ga (43mil), 0.0451 Design thickness, 0.0428 Minimum thickness
CDAA46 - 16ga (54mil), 0.0566 Design thickness, 0.0538 Minimum thickness
CDAA66 - 16ga (54mil), 0.0566 Design thickness, 0.0538 Minimum thickness
Standoff - 14ga (68mil). 0.0713 Design thickness, 0.0677 Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available upon request)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
| Product Code | Post Size | Length (L) | Width (W) | Height (H) |
|---|---|---|---|---|
| CDAA44 | 4x4 | 3-9/16" | 3-9/16" | 2-9/32" |
| CDAA46 | 4x6 | 3-9/16" | 5-1/2" | 2-7/8" |
| CDAA66 | 6x6 | 5-1/2" | 5-1/2" | 2-13/16" |
- For all technical inquiries regarding residential connectors, please contact Clip Express at 866-638-1908 or clipexpress@clarkdietrich.com.
- For all technical inquiries regarding residential connectors, please contact Clip Express at 866-638-1908 or clipexpress@clarkdietrich.com
Code Approvals & Performance Standards
- AISI S100-16 (2020) w/S2-20 North American Specification for the Design of Cold-Formed Steel Structural Members
- AISI S913-17 Test Standard for Determining the Strength and Deformation Behavior of Hold-Downs Attached to Cold-Formed Steel Structural Framing
- ANSI ANSI/AISC 360 Specification for Structural Steel Buildings
- ANSI ANSI/AWC NDS National Design Specification (NDS) for Wood Construction
- IBC 2021 International Building Code
- IRC 2021 International Residential Code
- DrJ Engineering LLC TER-2211-03 Evaluation Report for Wood Post Deck and Base Anchors
- SDS For ASTM A1003 Steel Framing Products For Interior Framing, Exterior Framing and Clips/Accessories
Product submittal SHeets
Click the below Product Code to view Submittal/Tech Datasheet.
| Product Code | Description |
|---|---|
| CDAA44 | Adjustable Post Base for 4x4 |
| CDAA46 | Adjustable Post Base for 4x6 |
| CDAA66 | Adjustable Post Base for 6x6 |
