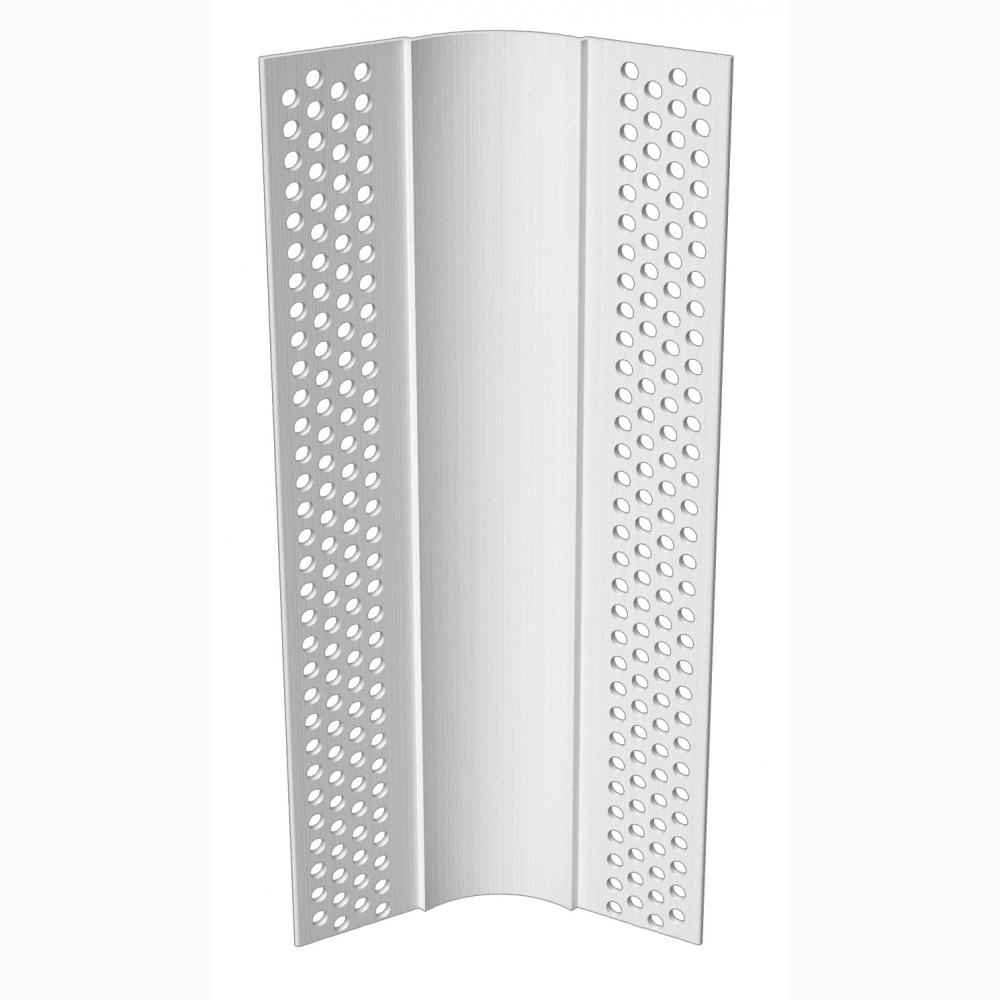

3/4" Splayed Inside Corner Cove

3/4" radius, splayed inside corner cove

Designed to complement ClarkDietrich vinyl 3/4" bullnose splayed corner bead. Adjustable from 120° to 140° for off-angle inside corner conditions.

Application(s): Drywall

Perforated flanges accept joint compound or veneer plaster for a flush finish.



Product Data & Ordering Information

Product code Radius Flange Length Pcs./Ctn.
ICC75 SP-8 3/4" 7/8" 8' 35
ICC75 SP-10 3/4" 7/8" 10' 35



Architectural Specs AIA / CEU SustainabilityPRO

Documents

Code Approvals & Performance Standards

  • ASTM C840 Standard Specification for Application and Finishing of Gypsum Board
  • ASTM C1047 Standard Specification for Accessories for Gypsum Wallboard and Gypsum Veneer Base
  • ASTM D1784 Standard Classification System and Basis for Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated Poly(Vinyl Chloride) (CPVC) Compounds
  • ASTM D3678 Standard Specification for Rigid Poly(Vinyl Chloride) (PVC) Interior - Profile Extrusions
  • SDS Vinyl Corp PVC Compounds

Storage:

All stored materials shall be kept dry.  Materials shall be stacked off the ground, supported on a level platform, and protected from the weather.

Product Submittal Sheets

Click the below Product Code to view Submittal/Tech Datasheet.

Product Code Description
ICC75 SP-8, ICC75 SP-10 3/4" Splayed Inside Corner Cove

ClarkDietrich SubmittalPro®

Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System.
