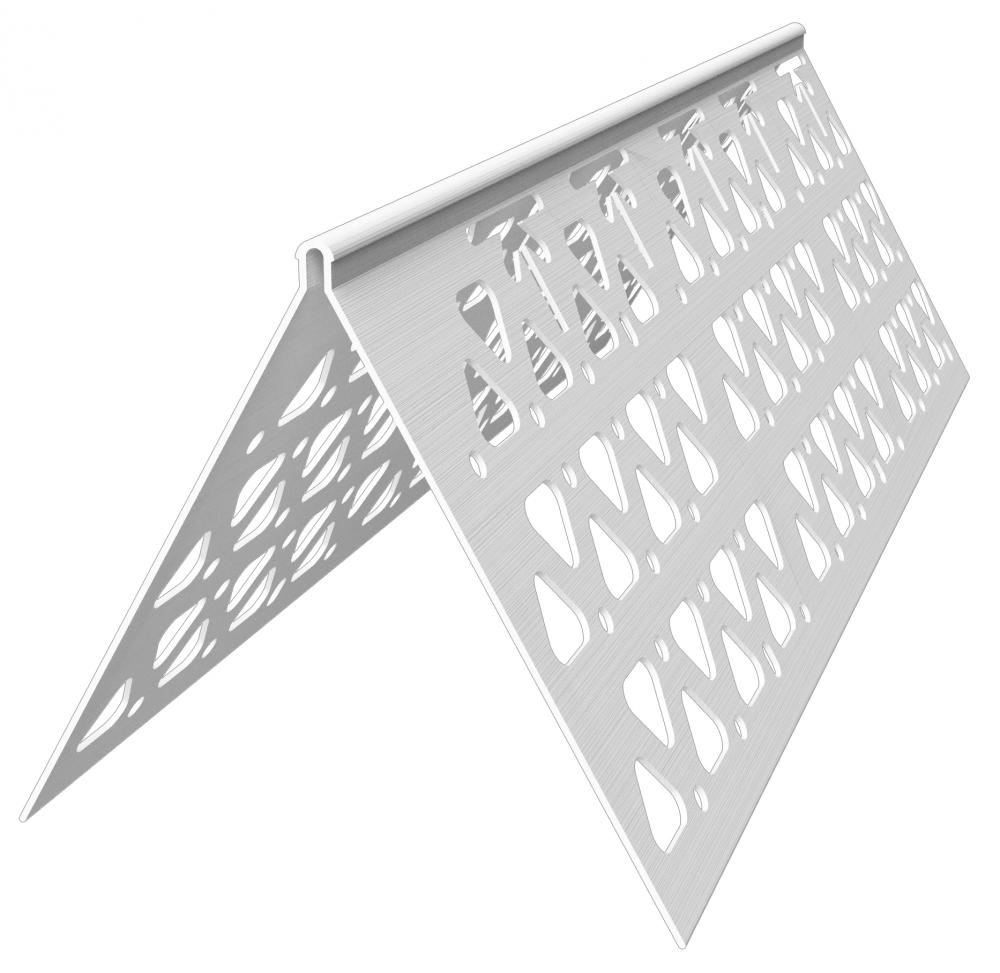

Wide Flange Corner Bead

Wide Flange Corner reinforcement

Wide Flange Corner Bead is designed for deep fills, irregular corners, and for use in conditions, requiring two layers of 5/8" drywall.

Application(s): Stucco

Designed for deep fills, irregular corners.

Produced with exterior grade-PVC and have a uniform thickness with feathering at the flange ends. Provides hard-to-damage, rust-proof, and straight corners. Large triangular perforations allow material to easily flow through and bond to the substrate for a more durable corner. Standard length is 10ft. on all corner beads.



Product Data & Ordering Information

Product code Ground Size (in.) Pcs./Box
#40 All 4-1/4 x 4-1/4 25
#30 All 3 x 3 25
#43 All 4-1/4 x 3 25
#4150 All 4-1/4 x 1-1/2 25
#3150 All 3 x 1-1/2 25



Architectural Specs AIA / CEU SustainabilityPRO

Documents

Code Approvals & Performance Standards

  • ASTM C841 Standard Specification for Installation of Interior Lathing and Furring
  • ASTM C1063 Standard Specification for Installation of Lathing and Furring to Receive Interior and Exterior Portland Cement-Based Plaster
  • ASTM C1780 Standard Practice for Installation Methods for Cement-based Adhered Masonry Veneer
  • ASTM C1861 Standard Specification for Lathing and Furring Accessories, and Fasteners, for Interior and Exterior Portland Cement-Based Plaster
  • ASTM D256 Standard Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics
  • ASTM D638 Standard Test Method for Tensile Properties of Plastics
  • ASTM D648 Standard Test Method for Deflection Temperature of Plastics Under Flexural Load in the Edgewise Position
  • ASTM D696 Standard Test Method for Coefficient of Linear Thermal Expansion of Plastics Between -30°C and 30°C with a Vitreous Silica Dilatometer
  • ASTM D790 Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
  • ASTM D1784 Standard Classification System and Basis for Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated Poly(Vinyl Chloride) (CPVC) Compounds
  • ASTM D4216 Standard Specification for Rigid Poly(Vinyl Chloride) (PVC) and Related PVC and Chlorinated Poly(Vinyl Chloride) (CPVC) Building Products Compounds
  • SDS Vinyl Corp PVC Compounds

STORAGE

All stored materials shall be kept dry.  Materials shall be stacked off the ground, supported on a level platform, and protected from the weather.

PRoduct submittal SHeets

Click the below Product Code to view Submittal/Tech Datasheet.

Product Code Description
#40, #30, #43, #4150, #3150 Wide Flange Corner Bead

ClarkDietrich SubmittalPro®

Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System.
