Continuous three-piece Soffit Vent
For stucco and plaster.
Application(s): Stucco

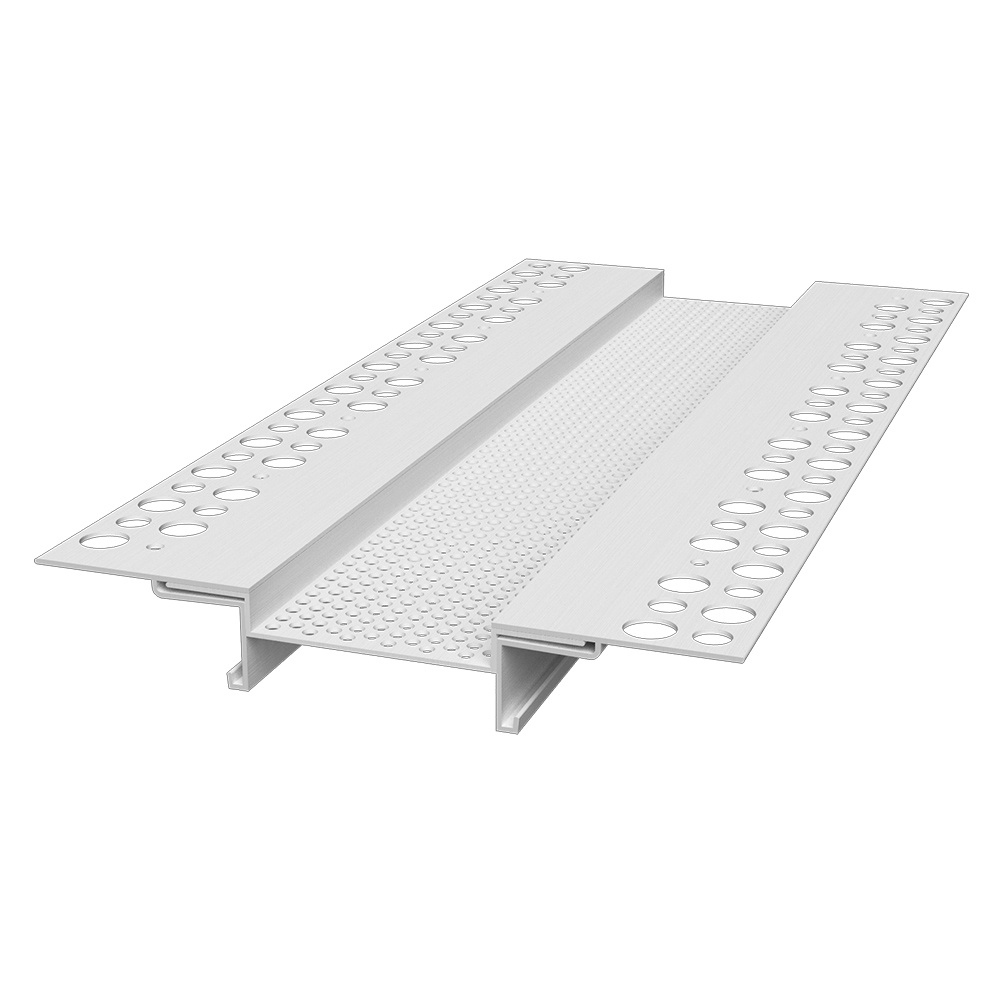

Continuous three-piece soffit vent for stucco and plaster. Vent clips are provided to connect the soffit vents and to assist in alignment. Three-piece vent with a perforated flange.
Product Data & Ordering Information
| Product code | Ground | Vent width | Overall width | Vent Area per LF | Pcs./Box |
|---|---|---|---|---|---|
| SV38-100 | 3/8" | 1" | 5-1/8" | 4 sq. in | 15 |
| SV50-100 | 1/2" | 13 | |||
| SV58-100 | 5/8" | 13 | |||
| SV75-100 | 3/4" | 13 | |||
| SV78-100 | 7/8" | 11 | |||
| SV100-100 | 1" | 10 | |||
| SV38-150 | 3/8" | 1-1/2" | 5-3/8" | 6 sq. in | 15 |
| SV50-150 | 1/2" | 13 | |||
| SV58-150 | 5/8" | 13 | |||
| SV75-150 | 3/4" | 13 | |||
| SV78-150 | 7/8" | 11 | |||
| SV100-150 | 1" | 10 | |||
| SV38-200 | 3/8" | 2" | 6-1/8" | 8 sq. in | 15 |
| SV50-200 | 1/2" | 10 | |||
| SV58-200 | 5/8" | 10 | |||
| SV75-200 | 3/4" | 9 | |||
| SV78-200 | 7/8" | 9 | |||
| SV100-200 | 1" | 9 | |||
| SV38-300 | 3/8" | 3" | 7-1/8" | 15 sq. in | 15 |
| SV50-300 | 1/2" | 13 | |||
| SV58-300 | 5/8" | 11 | |||
| SV75-300 | 3/4" | 11 | |||
| SV78-300 | 7/8" | 10 | |||
| SV100-300 | 1" | 10 | |||
| SV38-400 | 3/8" | 4" | 8-1/8" | 16 sq. in. | 13 |
| SV50-400 | 1/2" | 10 | |||
| SV58-400 | 5/8" | 10 | |||
| SV75-400 | 3/4" | 9 | |||
| SV78-400 | 7/8" | 9 | |||
| SV100-400 | 1" | 9 | |||
| SV38-600 | 3/8" | 6" | 10-1/8" | 18 sq. in. | 15 |
| SV50-600 | 1/2" | 15 | |||
| SV58-600 | 5/8" | 15 | |||
| SV75-600 | 3/4" | 15 | |||
| SV78-600 | 7/8" | 15 | |||
| SV100-600 | 1" | 15 |
Documents
Code Approvals & Performance Standards
- ASTM C841 Standard Specification for Installation of Interior Lathing and Furring
- ASTM C1063 Standard Specification for Installation of Lathing and Furring to Receive Interior and Exterior Portland Cement-Based Plaster
- ASTM C1780 Standard Practice for Installation Methods for Cement-based Adhered Masonry Veneer
- ASTM C1861 Standard Specification for Lathing and Furring Accessories, and Fasteners, for Interior and Exterior Portland Cement-Based Plaster
- ASTM D256 Standard Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics
- ASTM D638 Standard Test Method for Tensile Properties of Plastics
- ASTM D648 Standard Test Method for Deflection Temperature of Plastics Under Flexural Load in the Edgewise Position
- ASTM D696 Standard Test Method for Coefficient of Linear Thermal Expansion of Plastics Between -30°C and 30°C with a Vitreous Silica Dilatometer
- ASTM D790 Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
- ASTM D1784 Standard Classification System and Basis for Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated Poly(Vinyl Chloride) (CPVC) Compounds
- ASTM D4216 Standard Specification for Rigid Poly(Vinyl Chloride) (PVC) and Related PVC and Chlorinated Poly(Vinyl Chloride) (CPVC) Building Products Compounds
- SDS Vinyl Corp PVC Compounds
STORAGE
All stored materials shall be kept dry. Materials shall be stacked off the ground, supported on a level platform, and protected from the weather.
Product Submittal Sheets
Click the below Product Code to view Submittal/Tech Datasheet.
| Product Code | Description |
|---|---|
| SVXX-100 | 1" Soffit Vents (Three-Piece) |
| SVXX-150 | 1-1/2" Soffit Vents (Three-Piece) |
| SVXX-200 | 2" Soffit Vents (Three-Piece) |
| SVXX-300 | 3" Soffit Vents (Three-Piece) |
| SVXX-400 | 4" Soffit Vents (Three-Piece) |
| SVXX-600 | 6" Soffit Vents (Three-Piece) |
ClarkDietrich SubmittalPro®
Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System.
- Contact ClarkDietrich Technical Services at 888-437-3244 for any questions about creating product submittals or using SubmittalPro.
