Soffit Drip - Surface Mount

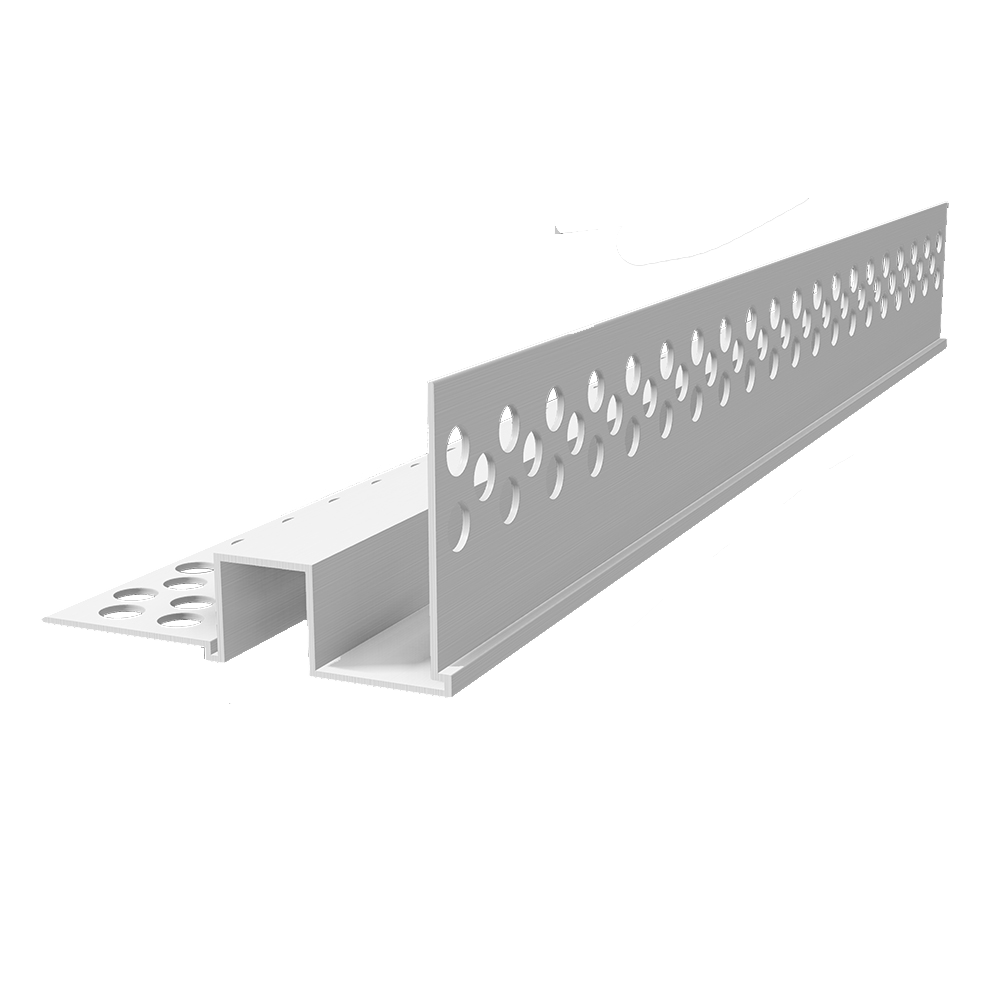

Designed for exterior soffits where a drip screed and an edge reveal need to be combined

Used to direct moisutre away from the installation in EIFS and DEFS installations. Always use a rigid backing or blocking material behind surface mounted reveal.

Found In:
Exterior Finishing > Reveals
Application(s): EIFS, DEFS
Description

Designed for surface-mount applications where a soffit edge reveal is combined with a drip edge in order to direct moisture away from the installation.

Always use a rigid backing or blocking material behind surface mounted reveal.

Caulk all intersections, butt joints, ends, and corners at the time of installation.

Product Data & Ordering Information

Product code Board thickness Reveal Pcs./Box
SDR50-50 1/2" 1/2" 20



Tools: Code & SDS Architectural Specs AIA / CEU
Resources

Catalog

ASTM & Code Standards

Product Specifications

  • ASTM E2568 - Standard Specification for PB Exterior Insulation and Finish Systems
  • ASTM D1784 - Standard Specification for Rigid Poly Vinyl Chloride (PVC) Compounds and Chlorinated Poly Vinyl Chloride (CPVC) Compounds
  • ASTM D4216 (Cell class 13244C) - Standard Specification for Rigid Poly Vinyl Chloride (PVC) Compounds and Related PVC and Chlorinated Poly Vinyl Chloride (CPVC) Building Products Compounds
  • ASTM D638 - Standard Test Methods for Tensile Properties of Plastics
  • ASTM D790 - Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
  • ASTM D256 - Standard Test Methods for Determing the Izod Pedulum Impact Resistance of Plastics
  • ASTM D648 - Standard Test Methods for Deflection Tempurature of Plastics Under Flexural Load in the Edgewise Position
  • ASTM D696 - Standard Test Methods for Coefficient of Linear Thermal Expansion of Plastics Between -30 Degrees Celsius and 30 Degrees Celsius Vitreous Silicia Dilatometer
  • SDS & Product Certification Information

Installation Standards

  • ASTM E2110 - Standard Terminology for Exterior Insulation & Finish Systems (EIFS)
  • ASTM E2486 - Standard Test Methods for Impact Resistance of Class PB and PI Exterior Insulation and Finish Systems (EIFS)
  • ASTM E2273 - Standard Test Method for Determining the Drainage Efficiency of Exterior Insulation and Finish Systems (EIFS) Clad Wall Assemblies
  • ASTM E2511 - Standard Guide for Detailing of EIFS-Clad Barrier and Drainage Wall Assemblies
Submittals

Product Submittal Sheets

Click the below Product Code to view Submittal/Tech Datasheet.

Product Code Description
SDR50-50 Soffit Drip - Surface Mount

ClarkDietrich SubmittalPro®

Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System.
