Quickly finishes doorways, knee walls and wall ends
Finish doorways, wall ends, knee walls and closets by eliminating the need for a drywall rip and two corner beads.

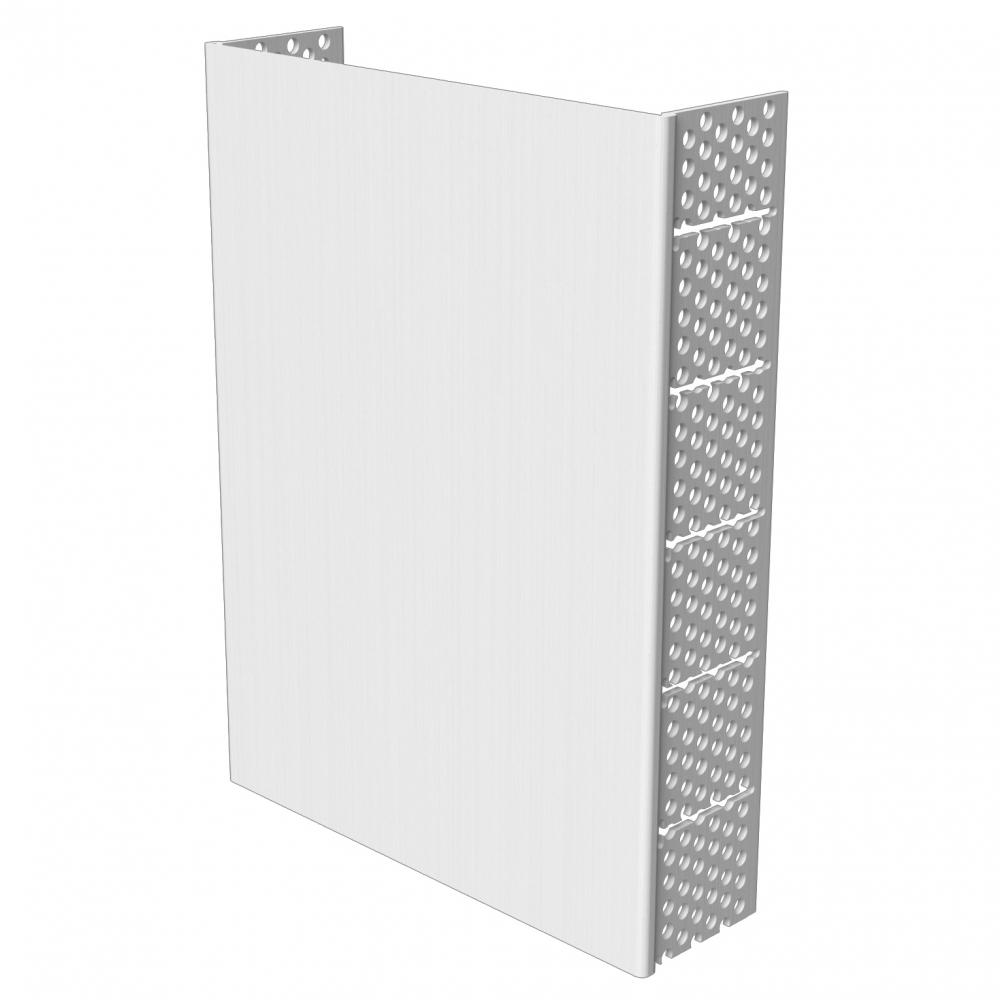

Partition End Caps are designed with a “T” slotted flange to create straight-to-curve arches by simply cutting the ends of "T" slots where arches or curve is desired. This product provides time (cost) savings through single-piece installation versus installing two corner beads. You also use less compound than two corner bead applications. Multiple perforations enhance strength of joint compound adhesion. Easy to cut, rust proof and dent resistant.
Product Data & Ordering Information
| Product code | Board thickness | Overall width | "T" Slotted flanges | Length | Pcs./Ctn. |
|---|---|---|---|---|---|
| PEC50-358-10 | 1/2" | 4-5/8" | 1-1/8" | 10' | 10 |
| PEC58-358-10 | 5/8" | 4-7/8" | 1-1/8" | 10' | 10 |
| PEC50-250-10 | 1/2" | 3-1/2" | 1-1/8" | 10' | 10 |
| PEC58-250-10 | 5/8" | 3-3/4" | 1-1/8" | 10' | 10 |
PEC50-358 = 3-5/8" stud with 1/2" gypsum board each side for an overall width of 4-5/8"
PEC58-358 = 3-5/8" stud with 5/8" gypsum board each side for an overall width of 4-7/8"
PEC50-250 = 2-1/2" stud with 1/2" gypsum board each side for an overall width of 3-1/2"
PEC58-250 = 2-1/2" stud with 5/8" gypsum board each side for an overall width of 3-3/4"
Documents
Code Approvals & Performance Standards
- ASTM C840 Standard Specification for Application and Finishing of Gypsum Board
- ASTM C841 Standard Specification for Installation of Interior Lathing and Furring
- ASTM C1047 Standard Specification for Accessories for Gypsum Wallboard and Gypsum Veneer Base
- ASTM D3678 Standard Specification for Rigid Poly(Vinyl Chloride) (PVC) Interior - Profile Extrusions
- SDS Vinyl Corp PVC Compounds
Storage:
All stored materials shall be kept dry. Materials shall be stacked off the ground, supported on a level platform, and protected from the weather.
PRoduct submittal SHeets
Click the below Product Code to view Submittal/Tech Datasheet.
| Product Code | Description |
|---|---|
| PEC50, PEC58 | Partition End Caps |
ClarkDietrich SubmittalPro®
Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System.
- Contact ClarkDietrich Technical Services at 888-437-3244 for any questions about creating product submittals or using SubmittalPro.
