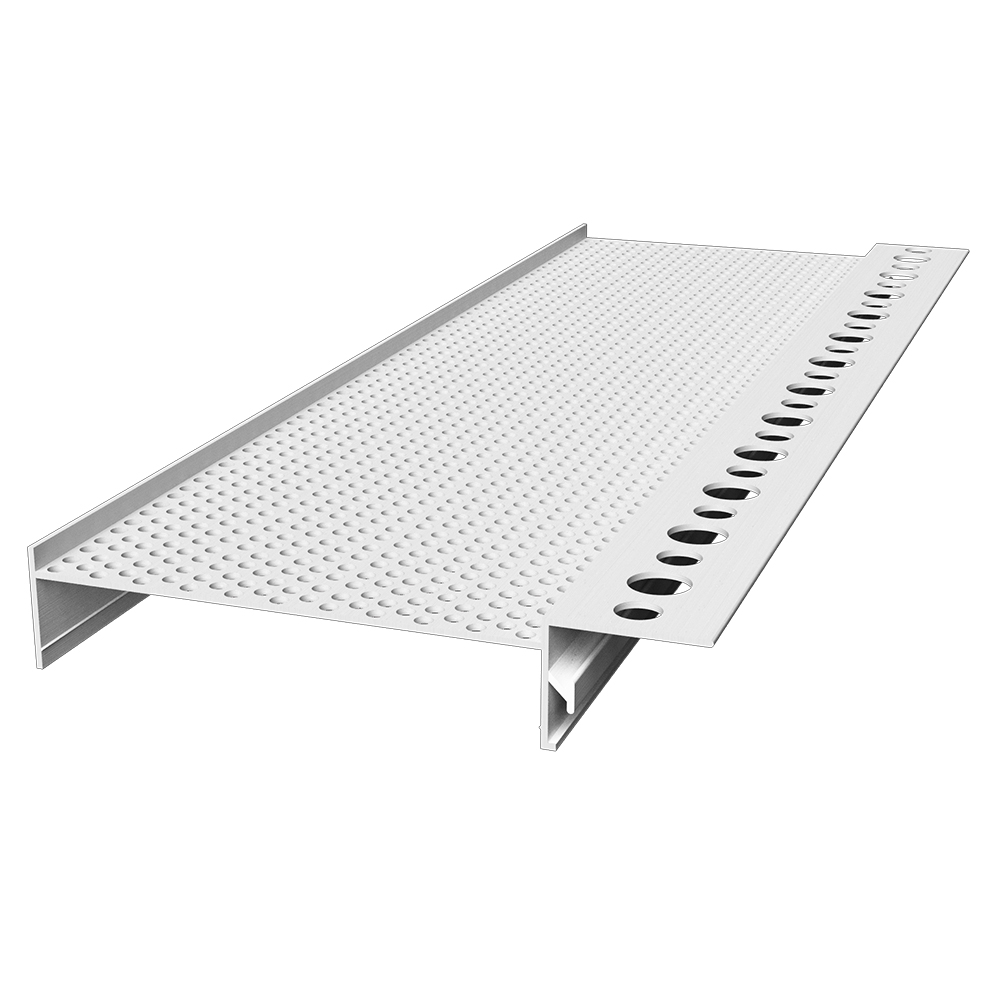

Available in several grounds and widths
Can be ordered with the 300VFZ clip for installation.
Application(s): Stucco
Available in several grounds and widths. Can be ordered with the 300VFZ clip for installation.
Product Data & Ordering Information
| Product code | Ground | Vent width | Overall width | Pcs./Box |
|---|---|---|---|---|
| FCS50-200V | 1/2" | 2" | 3" | 20 |
| FCS58-200V | 5/8" | 18 | ||
| FCS75-200V | 3/4" | 15 | ||
| FCS78-200V | 7/8" | 13 | ||
| FCS100-200V | 1" | 12 | ||
| FCS50-300V | 1/2" | 3" | 4" | 18 |
| FCS58-300V | 5/8" | 15 | ||
| FCS75-300V | 3/4" | 15 | ||
| FCS78-300V | 7/8" | 13 | ||
| FCS100-300V | 1" | 12 | ||
| FCS50-400V | 1/2" | 4" | 5" | 20 |
| FCS58-400V | 5/8" | 18 | ||
| FCS75-400V | 3/4" | 14 | ||
| FCS78-400V | 7/8" | 12 | ||
| FCS100-400V | 1" | 10 | ||
| FCS50-600V | 1/2" | 6" | 7" | 25 |
| FCS58-600V | 5/8" | 25 | ||
| FCS75-600V | 3/4" | 25 | ||
| FCS78-600V | 7/8" | 20 | ||
| FCS100-600V | 1" | 18 |
Catalog
ASTM & Code Standards
Product Specifications
- ASTM D638 - Standard Test Method for Tensile Properties of Plastics
- ASTM D790 - Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
- ASTM D256 - Standard test Methods for Determining the Izod Pendulum Impact Resistance of Plastics
- ASTM D648 - Standard Test Method for Deflection Temperature of Plastics Under Flexural Load in the Edgewise Position
- ASTM D696 - Standard Test Method for Coefficient of Linear Thermal Expansion of Plastics Between −30°C and 30°C with a Vitreous Silica Dilatometer
- ASTM D1784 - Standard Classification System and Basis for Specification for Rigid Poly Vinyl Chloride (PVC) Compounds and Chlorinated Poly Vinyl Chloride (CPVC) Compounds
- ASTM D4216 Cell Class 13244C - Standard Specification for Rigid Poly Vinyl Chloride (PVC) and Related PVC and Chlorinated Poly Vinyl Chloride (CPVC) Building Products Compounds
Installation Standards
- ASTM C1861 - Standard Specification for Lathing and Furring Accessories, and Fasteners, for Interior and Exterior Portland Cement-Based Plaster
- ASTM C1063 - Standard Specification for Installation of Lathing and Furring to Receive Interior and Exterior Portland Cement-Based Plaster. Table, 1, PVC for Exterior.
- ASTM C1780 - Standard Practice for Installation Methods for Cement-Based Adhered Masonry Veneer
- ASTM C841 - Standard Specification for Installation of Interior Lathing and Furring
- SDS & Product Certification Information
STORAGE
All stored materials shall be kept dry. Materials shall be stacked off the ground, supported on a level platform, and protected from the weather.
Product Submittal Sheets
Click the below Product Code to view Submittal/Tech Datasheet.
| Product Code | Description |
|---|---|
| FCSXX-200V | 2" FCS Soffit Vent |
| FCSXX-300V | 3" FCS Soffit Vent |
| FCSXX-400V | 4" FCS Soffit Vent |
| FCSXX-600V | 6" FCS Soffit Vent |
ClarkDietrich SubmittalPro®
Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System.
- Contact ClarkDietrich Technical Services at 888-437-3244 for any questions about creating product submittals or using SubmittalPro.
