E-Corner Bead

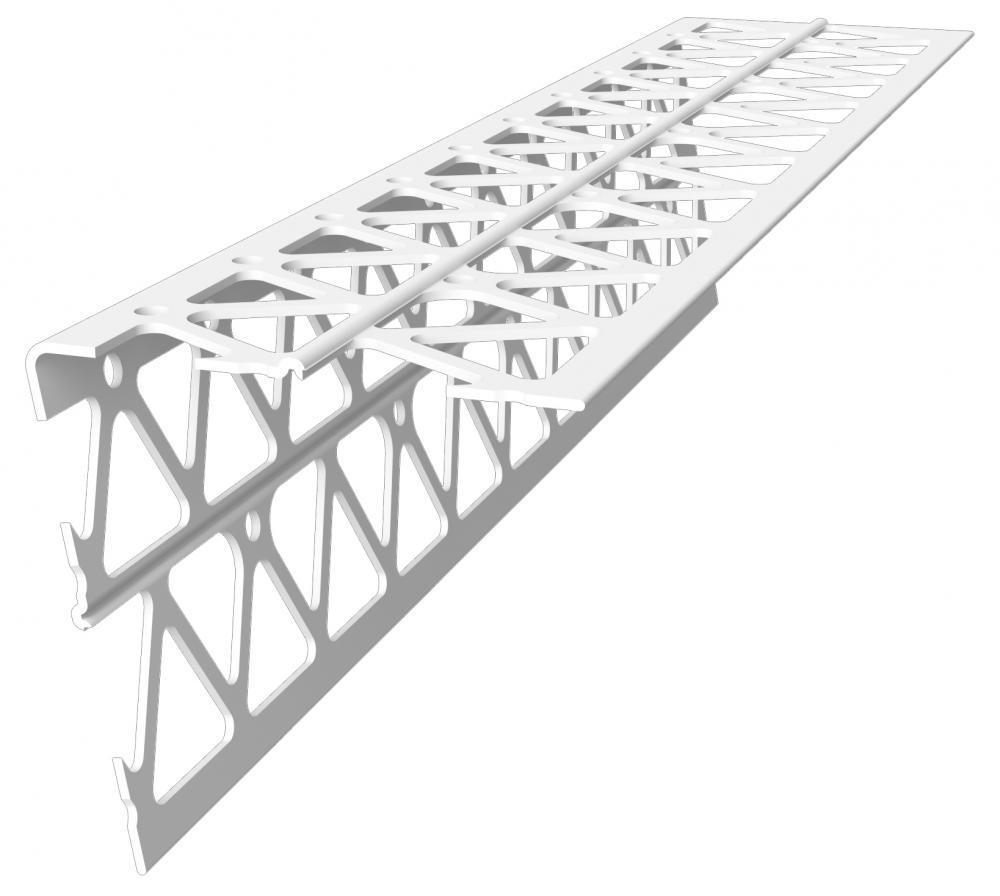

Fully Embedded Corner Bead

Provides reinforcement like welded-wire or woven wire laths.

Application(s): Stucco
Description

Fully embedded corner bead installed underneath the stucco finish for reinforcement, like welded wire corner bead. Nose is buried, not exposed. Works with diamond mesh, welded-wire or woven wire laths.

Vinyl is impervious to corrosion when coated in veneer plaster, wet joint compounds, or when placed in contact with steel or aluminum frames and resists impacts, dents, and damage during construction. No priming is required to add paint to vinyl products due to its paint adhesion properties. Vinyl has low electrical and thermal conductivity and is considered an excellent insulator, as well as being self-extinguishing and offering better resistance to burning than many other common building materials. Additionally, vinyl has a lower cost than equivalent products manufactured from zinc or aluminum, for use when the highest levels of corrosion resistance are required.

Installation

Easy Embedment System (EES) Overview

Downloadable CAD details are available in the Resources tab.

Resources

Catalog

ASTM & Code Standards

Product Specifications

  • ASTM D638 - Standard Test Method for Tensile Properties of Plastics
  • ASTM D790 - Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
  • ASTM D256 - Standard test Methods for Determining the Izod Pendulum Impact Resistance of Plastics
  • ASTM D648 - Standard Test Method for Deflection Temperature of Plastics Under Flexural Load in the Edgewise Position
  • ASTM D696 - Standard Test Method for Coefficient of Linear Thermal Expansion of Plastics Between −30°C and 30°C with a Vitreous Silica Dilatometer
  • ASTM D1784 - Standard Classification System and Basis for Specification for Rigid Poly Vinyl Chloride (PVC) Compounds and Chlorinated Poly Vinyl Chloride (CPVC) Compounds
  • ASTM D4216 Cell Class 13244C - Standard Specification for Rigid Poly Vinyl Chloride (PVC) and Related PVC and Chlorinated Poly Vinyl Chloride (CPVC) Building Products Compounds

Installation Standards

  • ASTM C1861 - Standard Specification for Lathing and Furring Accessories, and Fasteners, for Interior and Exterior Portland Cement-Based Plaster
  • ASTM C1063 - Standard Specification for Installation of Lathing and Furring to Receive Interior and Exterior Portland Cement-Based Plaster.  Table, 1, PVC for Exterior.
  • ASTM C1780 - Standard Practice for Installation Methods for Cement-Based Adhered Masonry Veneer
  • ASTM C841 - Standard Specification for Installation of Interior Lathing and Furring
  • SDS & Product Certification Information

STORAGE

All stored materials shall be kept dry.  Materials shall be stacked off the ground, supported on a level platform, and protected from the weather.

Submittals

PRoduct submittal SHeets

Click the below Product Code to view Submittal/Tech Datasheet.

Product Code Description
E-Corner E-Corner Bead

ClarkDietrich SubmittalPro®

Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System.
