Creates narrow 1/4" reveals in stucco and plaster surfaces
Application(s): Stucco

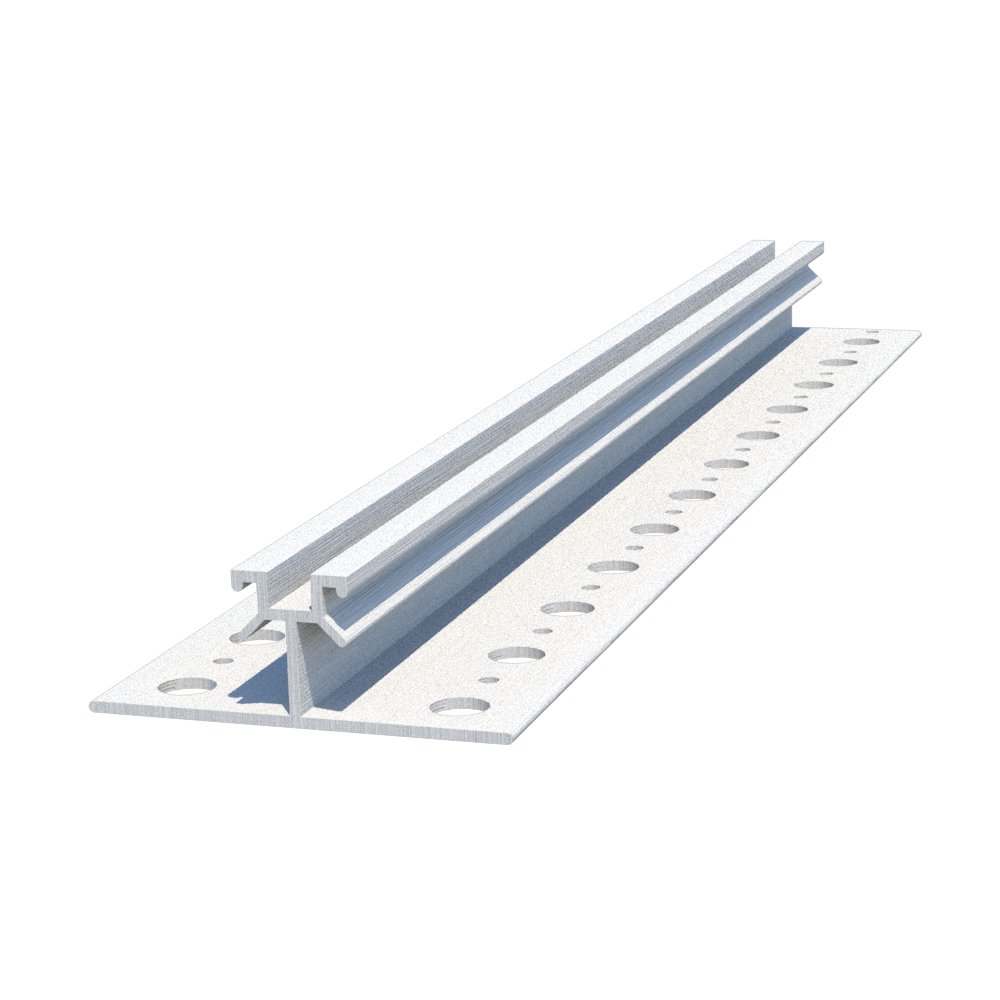

The Drum Channel Reveal is a plaster reveal leaving a narrow line on the wall surface and getting away from the monotony of large plaster surface.
Product Data & Ordering Information
| Product code | Ground (A) | Reveal (B) | Overall Width (C) | Pcs./Box |
|---|---|---|---|---|
| CSH-75-25R | 3/4" | 1/4" | 2-1/2" | 25 |
| CSH-78-25R | 7/8" | 1/4" | 2-1/2" | 25 |
Notes:
All profiles are provided in 10'-0" lengths.
Documents
Code Approvals & Performance Standards
- ASTM C1063 Standard Specification for Installation of Lathing and Furring to Receive Interior and Exterior Portland Cement-Based Plaster
- ASTM C1861 Standard Specification for Lathing and Furring Accessories, and Fasteners, for Interior and Exterior Portland Cement-Based Plaster
- ASTM D1784 Standard Classification System and Basis for Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated Poly(Vinyl Chloride) (CPVC) Compounds
- ASTM D4216 Standard Specification for Rigid Poly(Vinyl Chloride) (PVC) and Related PVC and Chlorinated Poly(Vinyl Chloride) (CPVC) Building Products Compounds
- SDS Vinyl Corp PVC Compounds
STORAGE
All stored materials shall be kept dry. Materials shall be stacked off the ground, supported on a level platform, and protected from the weather.
PRoduct submittal SHeets
Click the below Product Code to view Submittal/Tech Datasheet
| Product Code | Description |
|---|---|
| CSH-75-25R & CSH-78-25R | 1/4" Channel Reveal with 3/4" or 7/8" Ground |
ClarkDietrich SubmittalPro®
Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System
- Contact ClarkDietrich Technical Services at 888-437-3244 for any questions about creating product submittals or using SubmittalPro.
