Provides casing against doors, windows and other dissimilar materials
Designed to protect the raw edges of the board in Direct-Applied Exterior Finish Systems (DEFS).
Application(s): DEFS

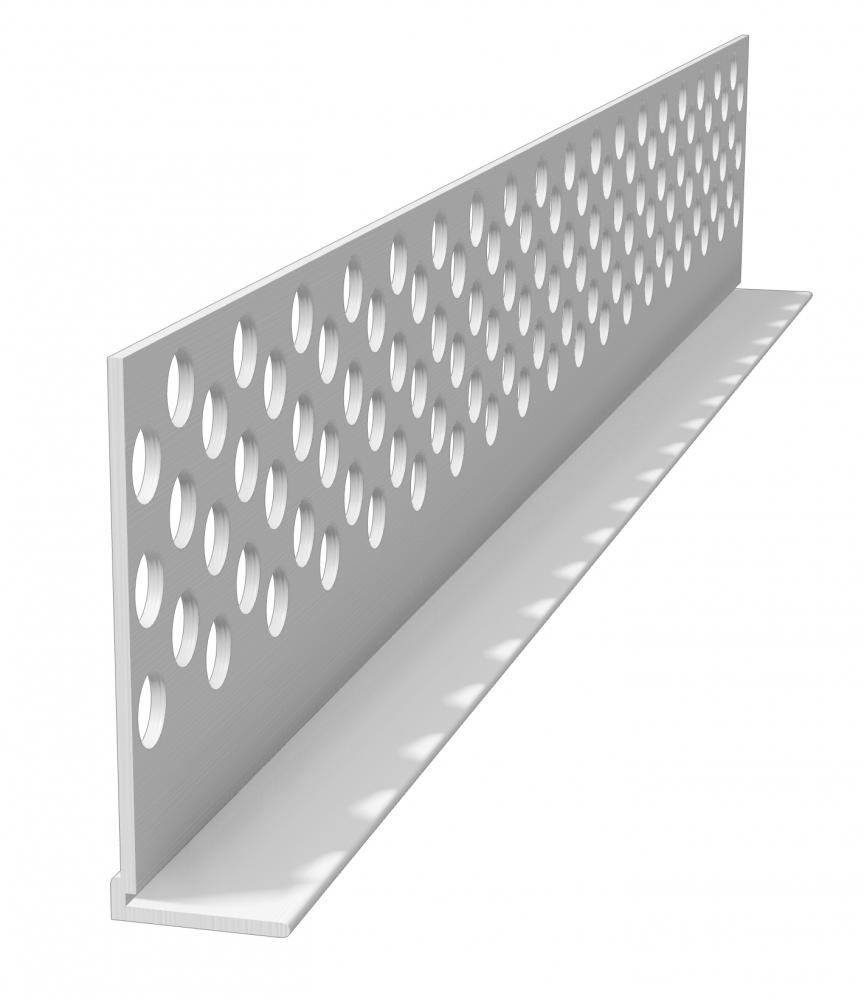

Designed to protect the raw edges of the board in Direct-Applied Exterior Finish Systems (DEFS). Two rows of large perforations allow the base coat mixture to easily flow through and bond to the substrate. Weep holes provide drainage away from the substrate. ClarkDietrich Keylock™ Splice connectors are available for alignment and as a base for sealant. Caulk all intersections, butt joints, ends, and corners at the time of installation
Product Data & Ordering Information
Product code | Finish thickness | Board thickness (A) | Perforated flange (B) | Pcs./Box |
---|---|---|---|---|
SBL50E | 1/16" | 1/2" | 1-3/4" | 50 |
SBL58E | 1/16" | 5/8" | 1-3/4" | 50 |
Documents
Code Approvals & Performance Standards
- ASTM D1784 Standard Classification System and Basis for Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated Poly(Vinyl Chloride) (CPVC) Compounds
- ASTM D4216 Standard Specification for Rigid Poly(Vinyl Chloride) (PVC) and Related PVC and Chlorinated Poly(Vinyl Chloride) (CPVC) Building Products Compounds
- ASTM E2110 Standard Terminology for Exterior Insulation and Finish Systems (EIFS)
- ASTM E2273 Standard Test Method for Determining the Drainage Efficiency of Exterior Insulation and Finish Systems (EIFS) Clad Wall Assemblies
- ASTM E2486 Standard Test Method for Impact Resistance of Class PB and PI Exterior Insulation and Finish Systems (EIFS)
- ASTM E2511 Standard Guide for Detailing of EIFS-Clad Barrier and Drainage Wall Assemblies
- SDS Vinyl Corp PVC Compounds
Product Submittal Sheets
Click the below Product Code to view Submittal/Tech Datasheet.
Product Code | Description |
---|---|
SBL50E & SBL58E | DEFS L-Stop Casing Bead |
ClarkDietrich SubmittalPro®
Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System.
- Contact ClarkDietrich Technical Services at 888-437-3244 for any questions about creating product submittals or using SubmittalPro.
