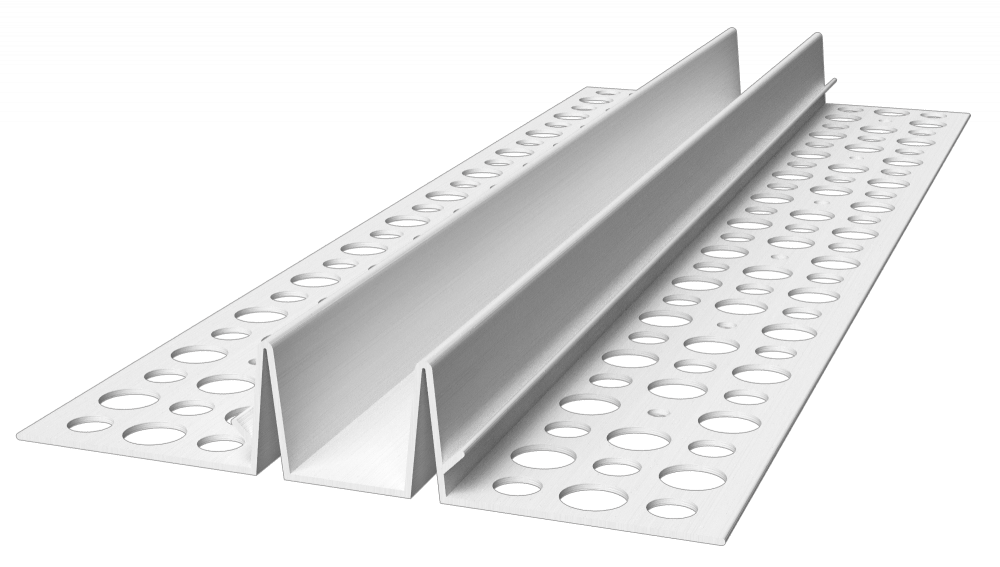

Control Joint and Reveal Combinations

Designed to relieve stress and assist in controlling cracking in large areas of walls and ceilings

Also creating 1/4" to 1-1/2" reveal in Stucco.

Application(s): Stucco
Description

Designed to relieve stress and assist in controlling cracking in large areas of walls and ceilings, also creating 1/4" to 1-1/2" reveal in Stucco. Surface connector clips are provided for alignment and as a base for sealants.

Control Joints help with the embedment of the lath and flange while assisting with tying requirements of discontinuous lath to the joint.

Product Data & Ordering Information

Product code Ground Overall width Reveal Pcs./Box
1538R-25 3/8" 4" 1/4" 25
1550R-25 1/2" 4" 1/4" 25
1558R-25 5/8" 4" 1/4" 20
1575R-25 3/4" 4" 1/4" 20
1578R-25 7/8" 4" 1/4" 15
15100R-25 1" 4" 1/4" 15
1538R-50 3/8" 4-1/2" 1/2" 25
1550R-50 1/2" 4-1/2" 1/2" 25
1558R-50 5/8" 4-1/2" 1/2" 20
1575R-50 3/4" 4-1/2" 1/2" 20
1578R-50 7/8" 4-1/2" 1/2" 15
15100R-50 1" 4-1/2" 1/2" 15
1538R-75 3/8" 4-3/4" 3/4" 25
1550R-75 1/2" 4-3/4" 3/4" 25
1558R-75 5/8" 4-3/4" 3/4" 20
1575R-75 3/4" 4-3/4" 3/4" 20
1578R-75 7/8" 4-3/4" 3/4" 15
15100R-75 1" 4-3/4" 3/4" 15
1538R-100 3/8" 5" 1" 18
1550R-100 1/2" 5" 1" 18
1558R-100 5/8" 5" 1" 15
1575R-100 3/4" 5" 1" 15
1578R-100 7/8" 5" 1" 14
15100R-100 1" 5" 1" 14
1538R-150 3/8" 5-1/2" 1-1/2" 18
1550R-150 1/2" 5-1/2" 1-1/2" 18
1558R-150 5/8" 5-1/2" 1-1/2" 15
1575R-150 3/4" 5-1/2" 1-1/2" 15
1578R-150 7/8" 5-1/2" 1-1/2" 14
15100R-150 1" 5-1/2" 1-1/2" 14
Resources

Catalog

ASTM & Code Standards

Product Specifications

  • ASTM D1784 - Standard Classification System and Basis for Specification for Rigid Poly Vinyl Chloride (PVC) Compounds and Chlorinated Poly Vinyl Chloride (CPVC) Compounds
  • ASTM D4216 Cell Class 13244C - Standard Specification for Rigid Poly Vinyl Chloride (PVC) and Related PVC and Chlorinated Poly Vinyl Chloride (CPVC) Building Products Compounds

Installation Standards

  • ASTM C1861 - Standard Specification for Lathing and Furring Accessories, and Fasteners, for Interior and Exterior Portland Cement-Based Plaster
  • ASTM C1063 - Standard Specification for Installation of Lathing and Furring to Receive Interior and Exterior Portland Cement-Based Plaster.  Table, 1, PVC for Exterior.
  • ASTM C1780 - Standard Practice for Installation Methods for Cement-Based Adhered Masonry Veneer
  • ASTM C841 - Standard Specification for Installation of Interior Lathing and Furring
  • SDS & Product Certification Information

STORAGE

All stored materials shall be kept dry.  Materials shall be stacked off the ground, supported on a level platform, and protected from the weather.

Submittals

PRoduct submittal SHeets

Click the below Product Code to view Submittal/Tech Datasheet.

Product Code Description
15XXR-25 1/4" Control Joint & Reveal Combinations
15XXR-50 1/2" Control Joint & Reveal Combinations
15XXR-75 3/4" Control Joint & Reveal Combinations
15XXR-100 1" Control Joint & Reveal Combinations
15XXR-150 1-1/2" Control Joint & Reveal Combinations
